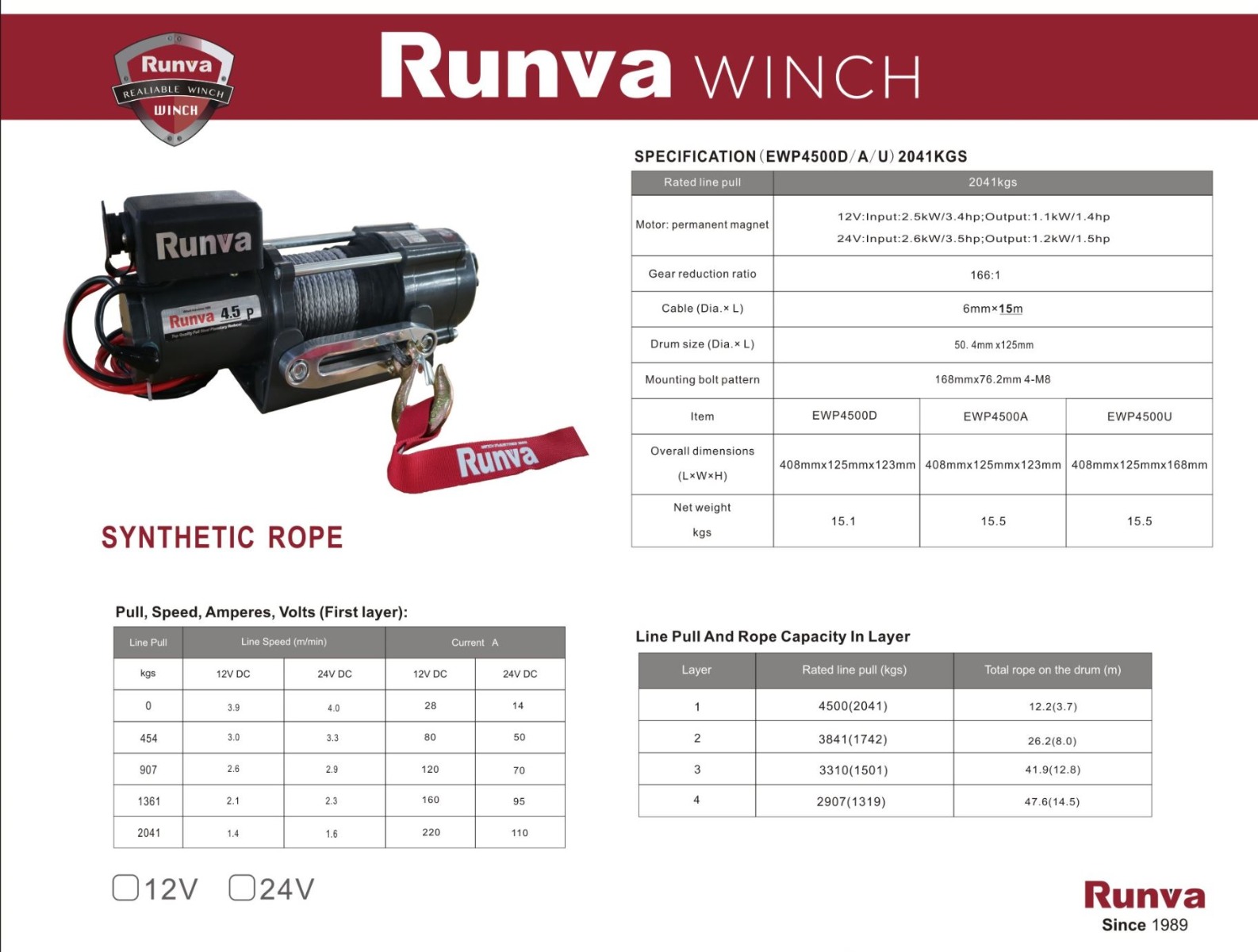

| Rated line pull |
4500 lbs (2041 kg) |
| Motor: permanent magnet |
12V:Input: 2.5kW / 3.4hp; Output: 1.1 kW / 1.4hp
24V:Input: 2.6kW / 3.5hp; Output: 1.2kW / 1.5hp |
| Gear reduction ratio |
166:1 |
| Cable (Dia.x L) |
Cable (Dia.× L) Ø 15/64″×47.6′ (Ø 6mm×14.5m) |

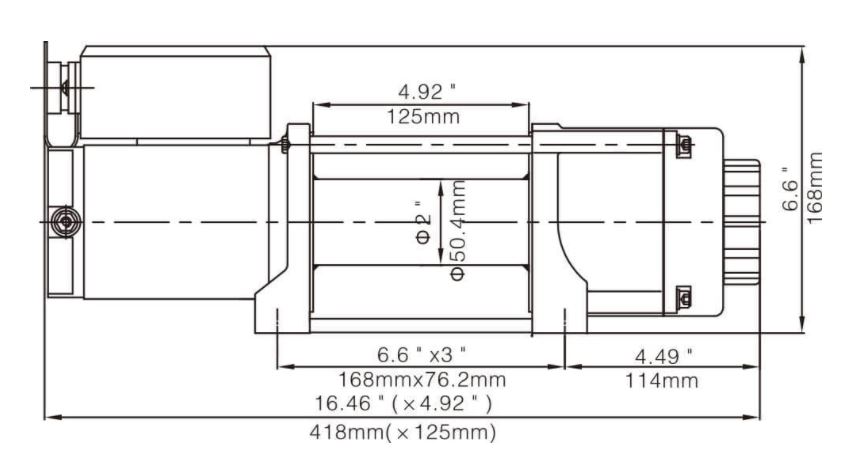

| Drum size (Dia.× L) |
Ø 2.0″×4.9″ (Ø 50.4mm×125mm) |
| Mounting bolt pattern |
6.6″×3″ (168mm×76.2mm)4-M8 |
| Line Speed Amperes Volts First Layer |
Line Pull and Rope Capacity in Layer Line Pull |
| Line Pull .kg |
Line Speed m/min |
Current A |
Lay of cable |
Rated line pull kg |
Total rope on the drun m |
|
12DC |
24DC |
12DC |
24DC |
1 |
2041 |
3.7 |
| 0 |
3.9 |
4.0 |
28 |
14 |
2 |
1742 |
8.0 |
| 454 |
3.0 |
3.3 |
80 |
50 |
3 |
1501 |
12.8 |
| 907 |
2.6 |
2.9 |
120 |
70 |
4 |
1319) |
14.5 |
| 2041 |
1.4 |
1.6 |
220 |
110 |
|
|
|
