Description
( mit Stahlseil Version siehe GW 4300 EC)
( for steel rope version look GW 4300 EC)

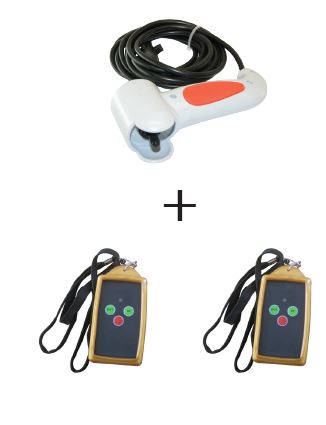

2 x Radio Remote Control + Handheld 3 mtr
2 x Funkfernbedienung + Kabel Bedienung 3 mtr
2 x radiografische afstandbediening + Handbediening 3 mtr
Stainless steel parts / Rollenfenster. Bolzen und dergleichen aus Edelstahl / Bouten, rollenvenster etc. uit Roestvaststaal
Extra Sealings and overrated Relais / Extra abgedichtet und extra schwere Relais / Extra afdichting en extra zware relais

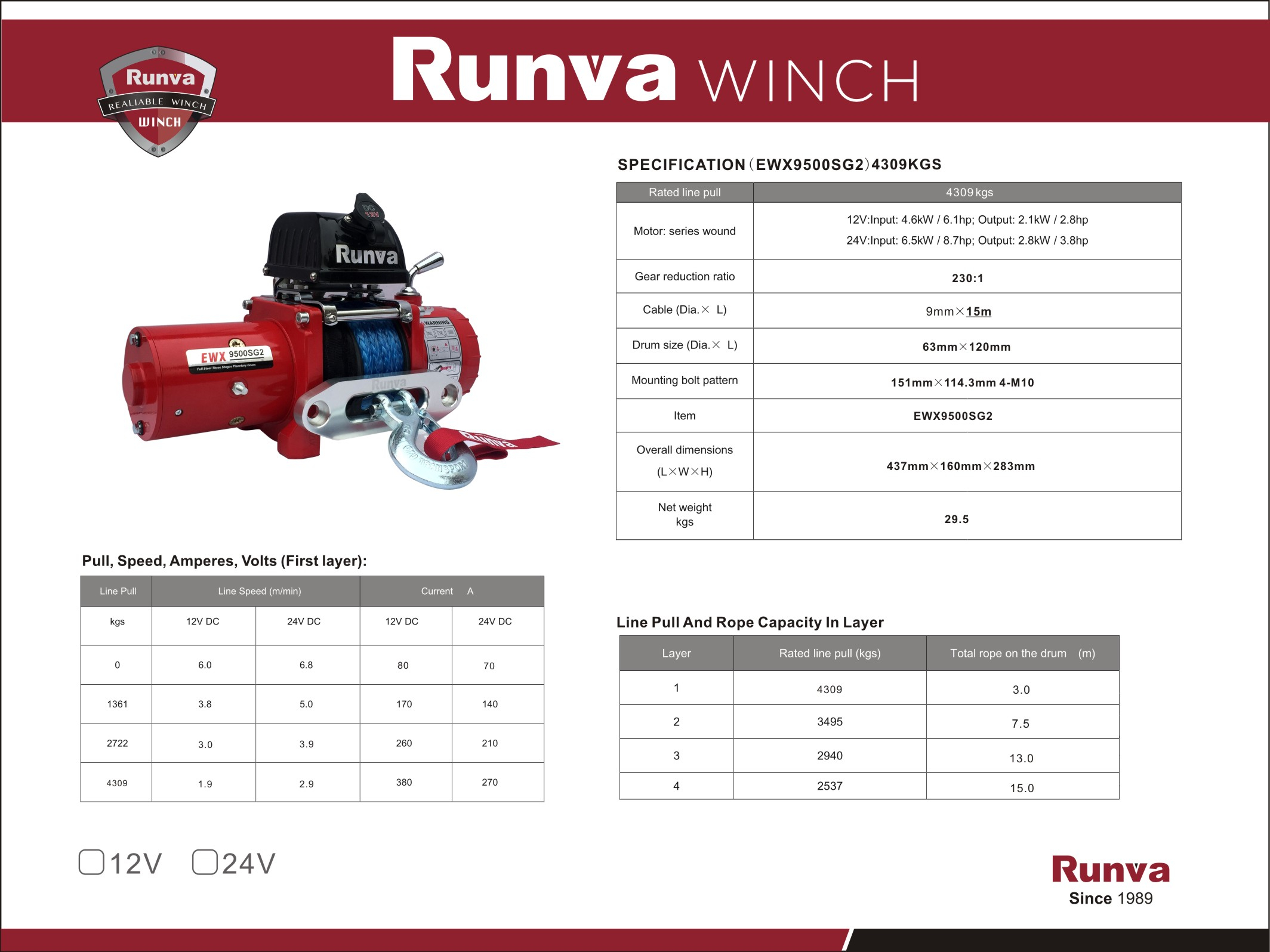

| SPECIFICATION | |
| Rated line pull |
4309 kgs |
|
Motor: series wound |
12V:Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp |
|
Gear reduction ratio |
230:1 |
|
Cable (Dia.× L) |
Ø9.2mm×14.0 |
|
Drum size (Dia.× L) |
Ø63mm×120mm |
|
Mounting bolt pattern |
151mm×114.3 mm 4-M10 |
|

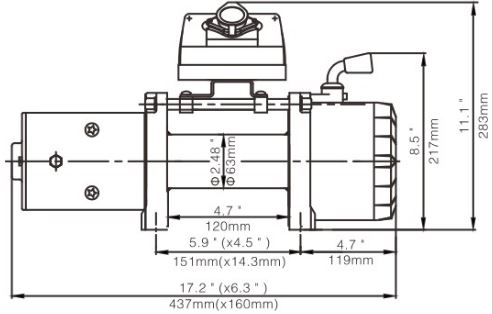

Overall dimensions |
437mm ×160 mm ×283 mm |
|
Net weight |
29.5 |
| Pull, Speed, Amperes, Volts (First layer): | ||||
| Line Pull |
Line Speed m/min |
Current A |
||
|
Ibs (kgs) |
12V DC |
24V DC |
12V DC |
24V DC |
|
0 |
6.0 |
6.8 |
80 |
70 |
|
3000(1361) |
3.8 |
5.0 |
170 |
140 |
|
6000(2722) |
3.0 |
3.9 |
260 |
210 |
|
9500(4309) |
1.9 |
2.9 |
380 |
270 |
| Line Pull and Rope Capacity In Layer | ||
| Layer |
Rated line pull lbs (kgs) |
Total rope on the drum ft (m) |
|
1 |
4309 |
3.0 |
|
2 |
3495 |
7.5 |
|
3 |
2940 |
13.0 |
|
4 |
2537 |
14.0 |
