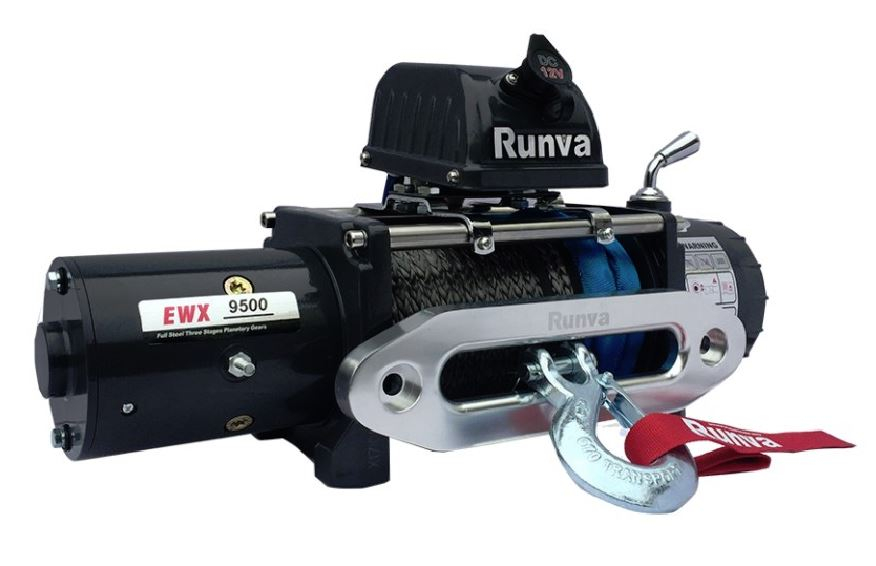

Description
( mit Stahlseil Version siehe GW 4300 E )
( for steel rope version look GW 4300 E )
2 x Radio Remote Control + Handheld 3 mtr
2 x Funkfernbedienung + Kabel Bedienung 3 mtr
2 x radiografische afstandbediening + Handbediening 3 mtr
Stainless steel parts / Rollenfenster. Bolzen und dergleichen aus Edelstahl / Bouten, rollenvenster etc. uit Roestvaststaal
Extra Sealings and overrated Relais / Extra abgedichtet und extra schwere Relais / Extra afdichting en extra zware relais
Features:
l Full steel reducer gear / Gehärtete und Geschliffenes Getriebe / Geharde en geslepen tandwielen
l Company patent three stage planetary gear reducer / Mit Planeten Getriebe / Met planetaire tandwielen
l Automatic screw cone braking action / Ladung wird automatisch festgehalten biss viele malen max. Kraft / Oplopende remwerking tot vele malen van last
l SWR tensioner available / Andrückrolle Optional zu bekommen / Aandrukrol is optioneel te verkrijgen
|

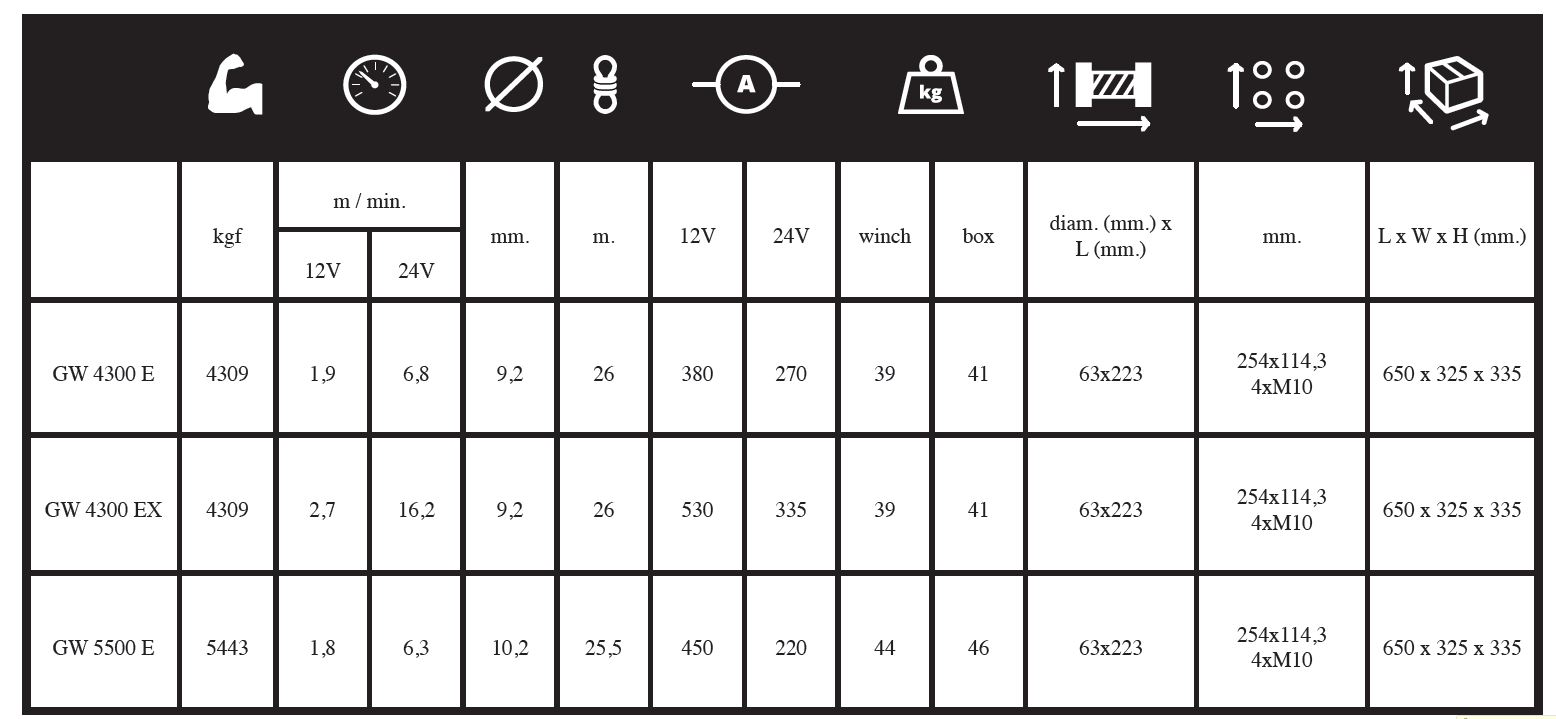

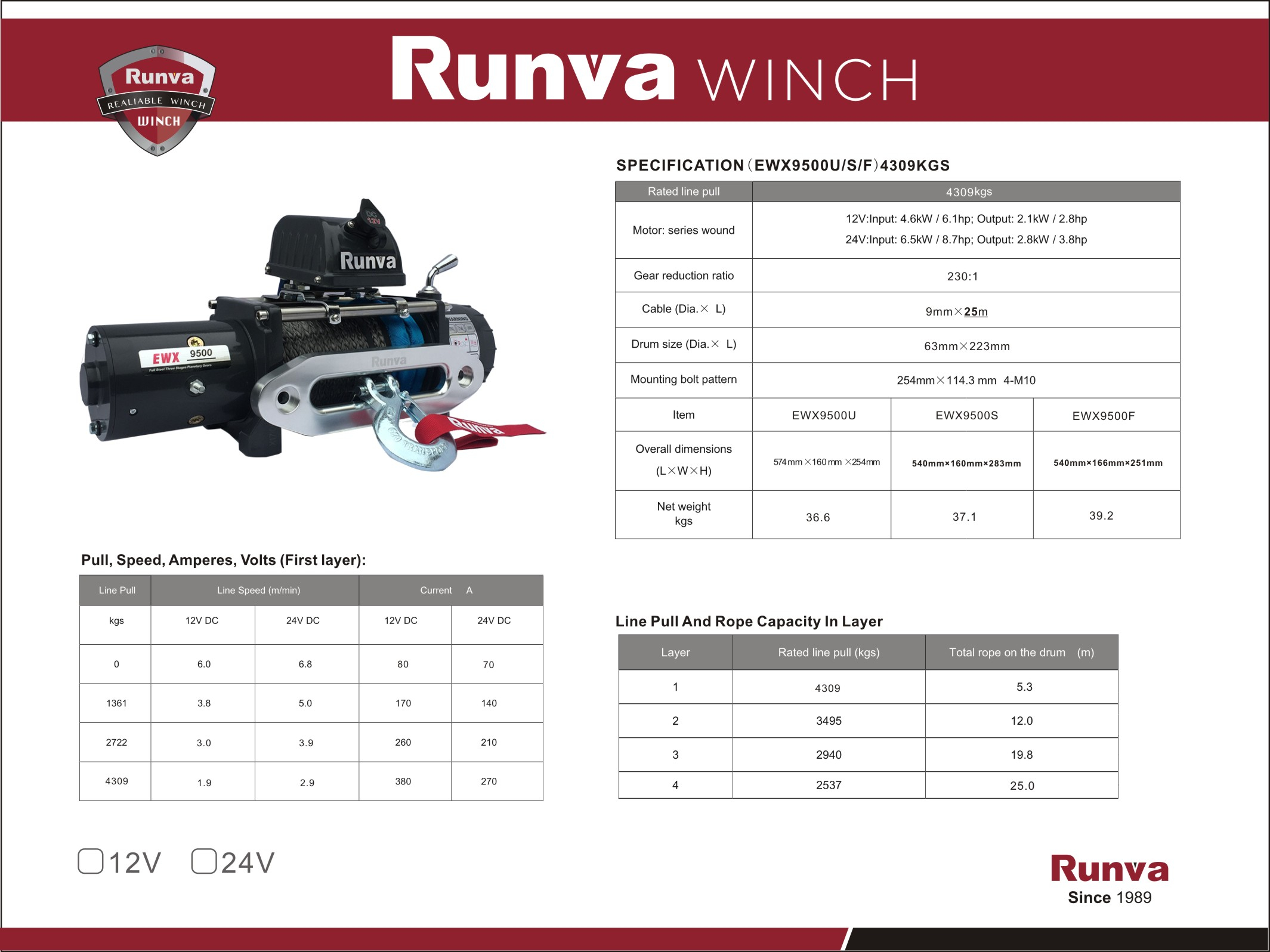

Rated line pull |
4309 kgf |
|||||||||
|
Motor: series wound |
12V:Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp 24V:Input: 6.5kW / 8.7hp; Output: 2.8kW / 3.8hp |
|||||||||
|
Gear reduction ratio |
230:1 |
|||||||||
|
Cable (Dia.× L) |
Ø9.2mm×26m |
|||||||||
|
Drum size (Dia.× L) |
Ø63mm×223 mm |
|||||||||
|
Mounting bolt pattern |
254mm×114.3 mm 4 x M10 |
|||||||||
|
Item |
|
|
|
|||||||
|

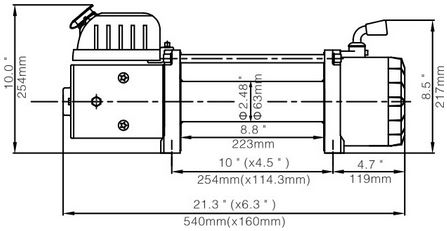

Overall dimensions (L×W×H) |
|
|
540mm ×166mm ×251mm |
|||||||
|
Net weight kgf |
|
|
39.2 |
|||||||
|
|
Line Pull |
Line Speed m/min |
Current A |
|||||||
|
|
kgf |
12V DC |
24V DC |
12V DC |
24V DC |
|||||
|
|
0 |
6.0 |
6.8 |
80 |
70 |
|||||
|
|
1361 |
3.8 |
5.0 |
170 |
140 |
|||||
|
|
2722 |
3.0 |
3.9 |
260 |
210 |
|||||
|
|
4309 |
1.9 |
2.9 |
380 |
270 |
|||||
|
|
Layer |
Rated line pull kgf |
Total rope on the drum m |
|||||||
|
|
1 |
4309 |
5.3 |
|||||||
|
|
2 |
3495 |
12.0 |
|||||||
|
|
3 |
2940 |
19.8 |
|||||||
|
|
4 |
2537 |
26.0 |
|||||||
