Description
INKLUSIVE FUNKFERNBEDIENUNG / Kehrrolle / Unterplatte + KUNSTSTOFSEIL
INCLUSIEF RADIOGRAFISCHE BEDIENING / Keerrol / Onderplaat + LIERTOUW

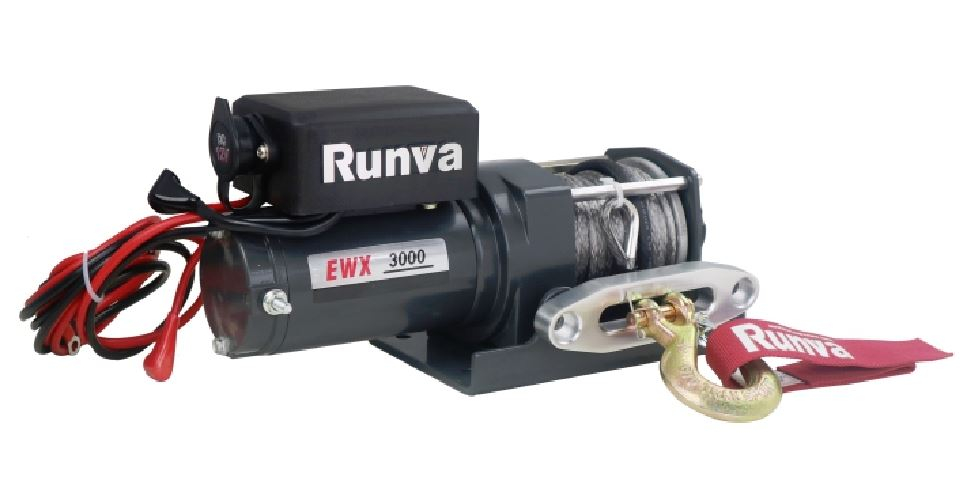

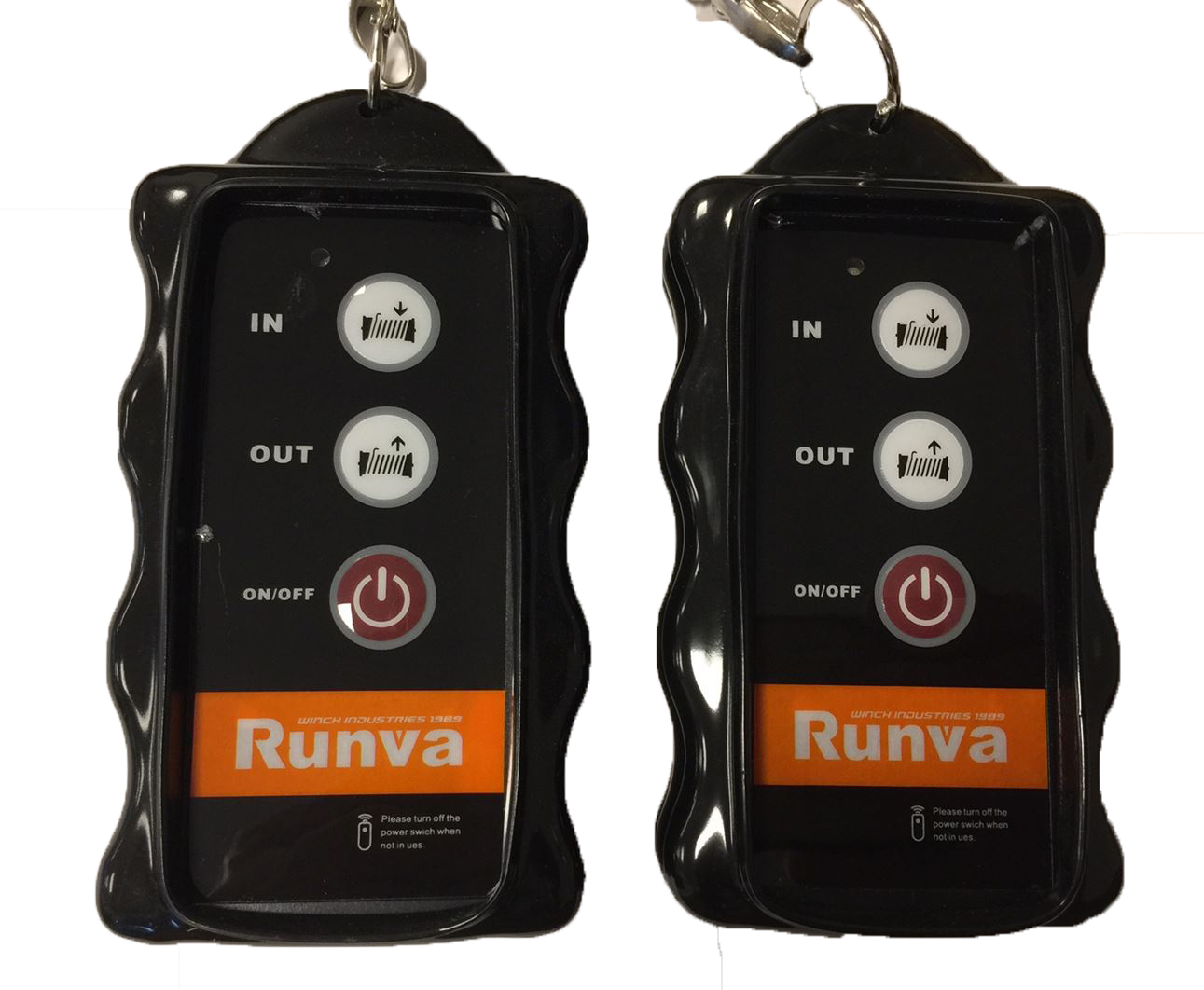

INCLUSIVE RADIO REMOTE / Snatchblock / Base plate + Synthetic Rope

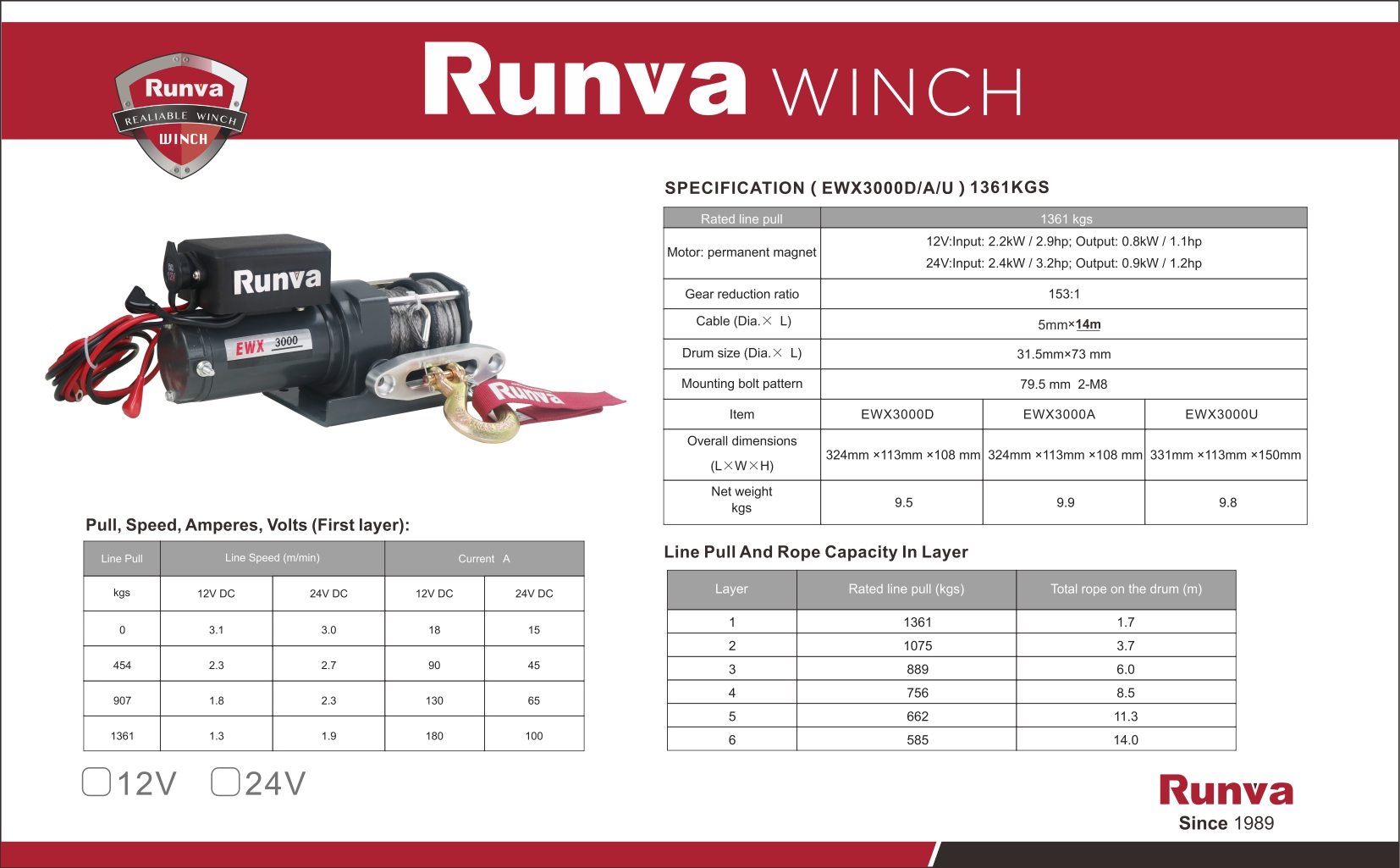

| SPECIFICATION(EWX3000) | |||
| Rated line pull | 3000 lbs (1361 kg) | ||
| Motor: permanent magnet | 12V:Input: 2.2kW / 2.9hp; Output: 0.8kW / 1.1hp 24V:Input: 2.4kW / 3.2hp; Output: 0.9kW / 1.2hp |
||
| Gear reduction ratio | 153:1 | ||
| Cable (Dia.× L) | Ø3/16″×46′(Ø4.8mm×14m) | ||
| Drum size(Dia.× L) | Ø1.24″×2.87″ (Ø31.5mm×73 mm) | ||
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 | ||
| ITEM | EWX3000D | EWX3000A | EWX3000U |
| Overall dimensions (L×W×H) |
12.8″×4.5″×4.3″ 324mm ×113mm ×108 mm |
12.8″×4.5″×4.3″ 324mm ×113mm ×108 mm |
13.0″×4.5″×5.9 ” 331mm ×113mm×150mm |
| Net weight Ibs(kgs) |
21.0 / 9.5 | 21.8 / 9.9 | 21.6 / 9.8 |
| Pull, Speed, Amperes, Volts (First layer): | ||||
| Line Pull | Line Speed ft/min (m/min) | Current A | ||
| Ibs (kgs) | 12V DC | 24V DC | 12V DC | 24V DC |
| 0 | 10.2(3.1) | 9.8(3.0) | 18 | 15 |
| 1000(454) | 7.5(2.3) | 8.9(2.7) | 90 | 45 |
| 2000(907) | 5.9(1.8) | 7.5(2.3) | 130 | 65 |
| 3000(1361) | 4.3(1.3) | 6.2(1.9) | 180 | 100 |
| Line Pull and Rope Capacity In Layer | ||
| Layer | Rated line pull lbs (kgs) | Total rope on the drum ft (m) |
| 1 | 3000(1361) | 5.6(1.7) |
| 2 | 2370(1075) | 12.1(3.7) |
| 3 | 1960(889) | 19.7(6.0) |
| 4 | 1670(756) | 27.9(8.5) |
| 5 | 1460(662) | 37.1(11.3) |
| 6 | 1290(585) | 45.9(14.0) |

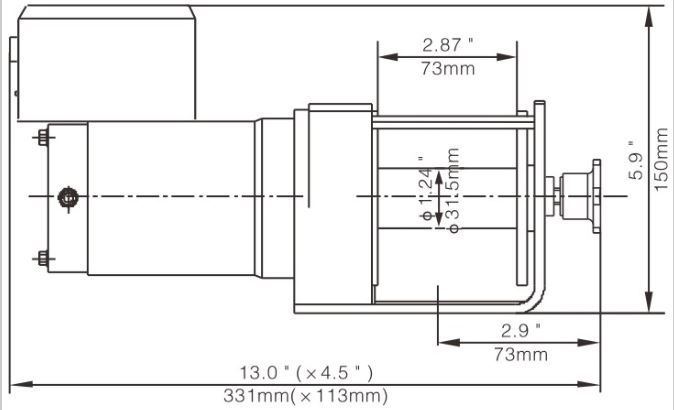

| Winch Dimensions: |
|
|
