RUNVA EWB 9070 (kg) 24V + Funk /Radio control + IP67 Waterproof

INKLUSIVE FUNKFERNBEDIENUNG

INCLUSIEF RADIOGRAFISCHE BEDIENING

INCLUSIVE RADIO REMOTE

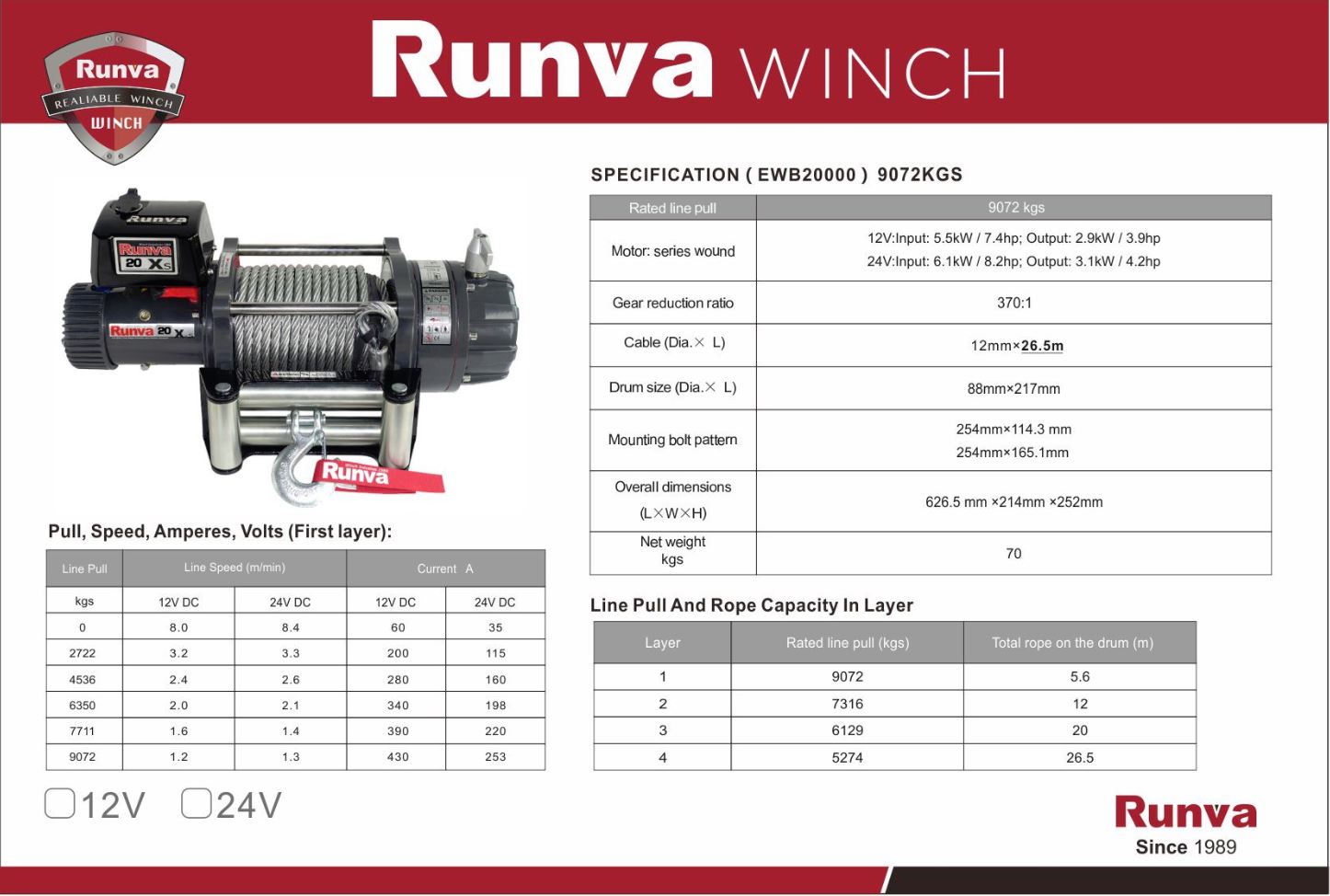

SPECIFICATION（EWB20000）
Rated line pull	9072 kg
Motor: permanent magnet
	24V:Input: 6,1kW Output: 3.1kW
Gear reduction ratio	370:1
Cable (Dia.× L)	Ø 12mm×25.5m)
Drum size (Dia.× L)	Ø 88mm×217 mm)
Mounting bolt pattern	254 mm×114.3
Item

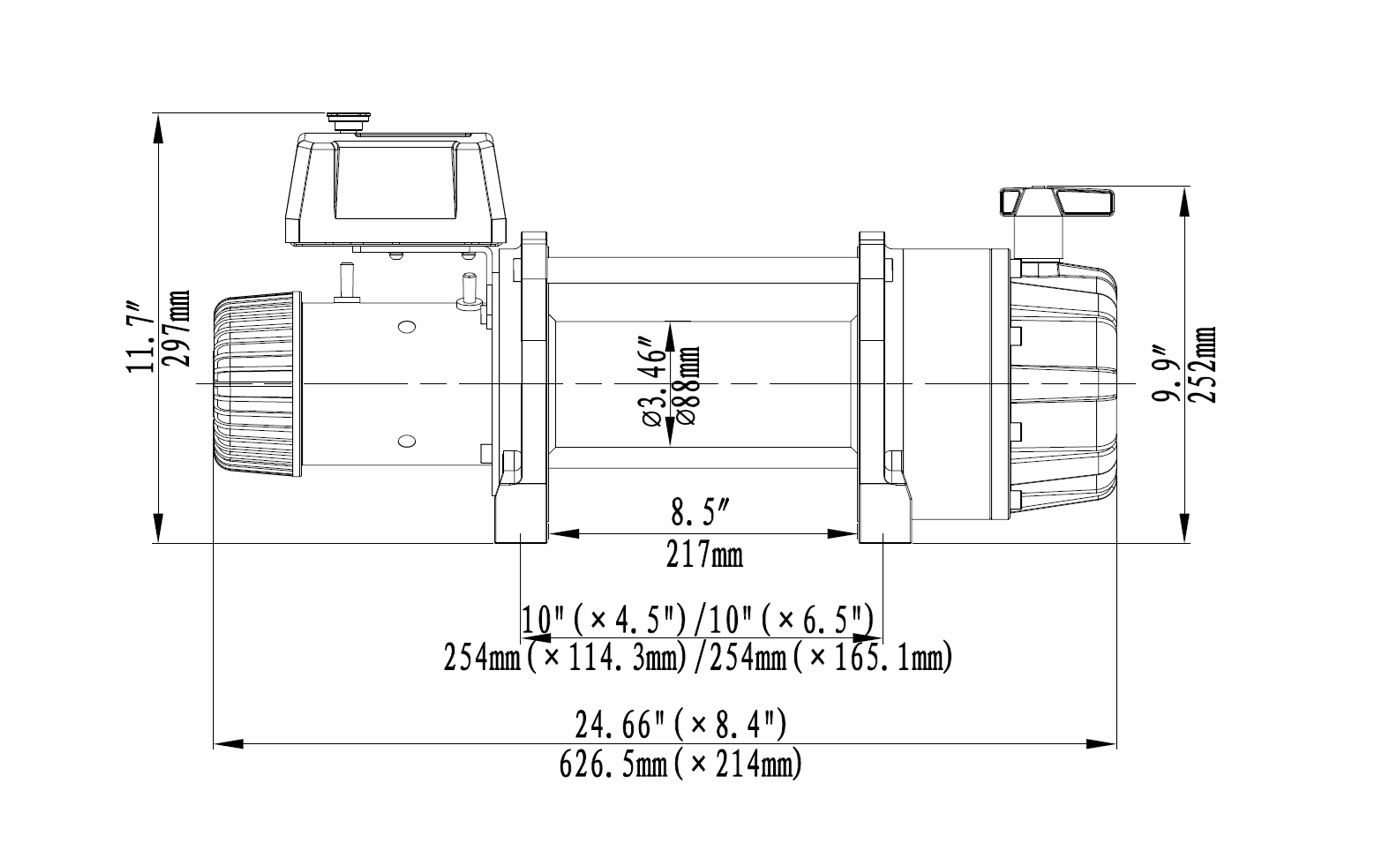

Overall dimensions (L×W×H)	626mm ×214mm ×252 mm
Net weight Ibs(kgs)	70

SKU: 3.L.1 Categories: Runva, Uncategorized

Description
Additional information

Description

INKLUSIVE FUNKFERNBEDIENUNG

INCLUSIEF RADIOGRAFISCHE BEDIENING

INCLUSIVE RADIO REMOTE

SPECIFICATION（EWB20000）
Rated line pull	9072 kg
Motor: permanent magnet
	24V:Input: 6,1kW Output: 3.1kW
Gear reduction ratio	370:1
Cable (Dia.× L)	Ø 12mm×25.5m)
Drum size (Dia.× L)	Ø 88mm×217 mm)
Mounting bolt pattern	254 mm×114.3
Item
Overall dimensions (L×W×H)	626mm ×214mm ×252 mm
Net weight Ibs(kgs)	70

Additional information

Weight	70 kg
