Description
Optional:
Hydraulic valve set 12 V / Hydraulische set 12 V
Hydraulic valve set 24 V / Hydraulische set 24V
| Rated line pull | 12000 lbs (5443 kg) | |
| Motor displacement | 50ml/r | |
| Oil flow | 5～50L/min | |
| Pressure | 11Mpa | |
| Gear reduction ratio | High speed: 13.6:1;Low speed: 42.2:1 | |
| Cable (Dia.× L) | Ø13/32 “×83.7′ (Ø10.2mm×25.5m) | |
| Drum size(Dia.× L) | Ø2.6 “×8. 8” (Ø66mm×223mm) | |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 | |
| Line pull lbs. (kg) | Line speed ft/min(m/min) | Line Pull and Rope Capacity in Layer Line Pull | ||||||
| Low speed | High speed | Pressure Mpa(Psi) | Flow G/min (L/min) | Low speed | High speed | Layer of cable | Rated line pull Lbs.(kg) | Total rope on drum ft (m) |
| 0 | 0 | 2.0(290.1) | 1.3(5) | 1.5(0.5) | 5.2(1.6) | 1 | 12000(5443) | 15.7(4.8) |
| 3000(1814) | 2000(907) | 4.1(596.6) | 2.6(10) | 3.3(1.0) | 10.8(3.3) | 2 | 9563(4338) | 36.4(11.1) |
| 6000(2722) | 3000(1361) | 6.3(916.7) | 5.3(20) | 6.6(2.0) | 21.6(6.6) | 3 | 7949(3606) | 60.0(18.3) |
| 9000(4082) | 4000(1814) | 8.5(1236.8) | 9.2(35) | 12.5(3.8) | 38.3(11.7) | 4 | 6801(3085) | 83.7 (25.5) |
| 12000(5443) | 5000(2268) | 11.0(1595.4) | 13.2(50) | 17.7(5.4) | 54.4(16.6) | |||

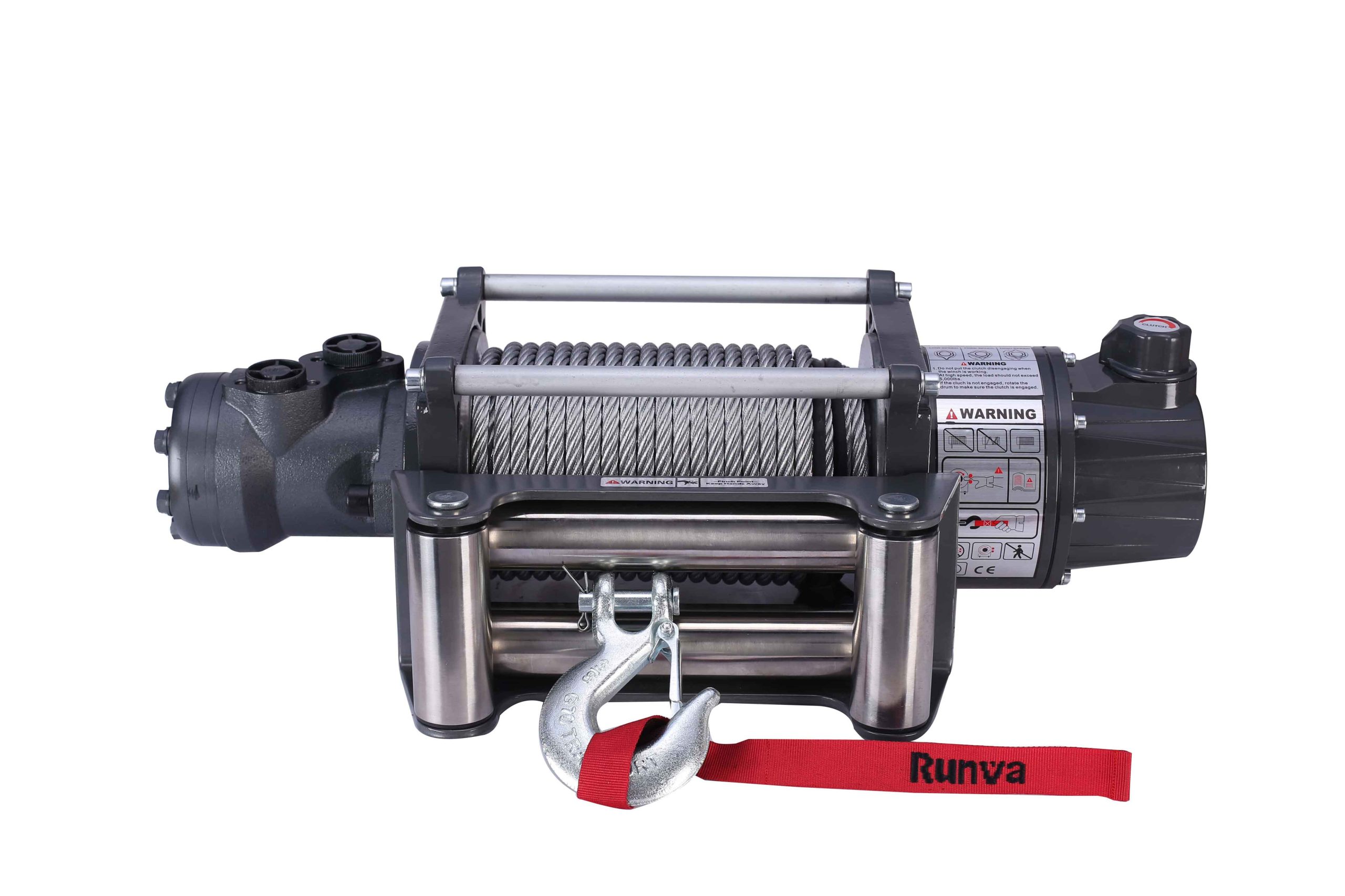

| Item | HWD12000 |
| Overall dimensions | 23.66″×6.89″×6.9″ |
| (L×W×H) | 601mm ×175mm ×176mm |
| Net weight (Ibs/kg) | 102lbs / 45.9kg |
