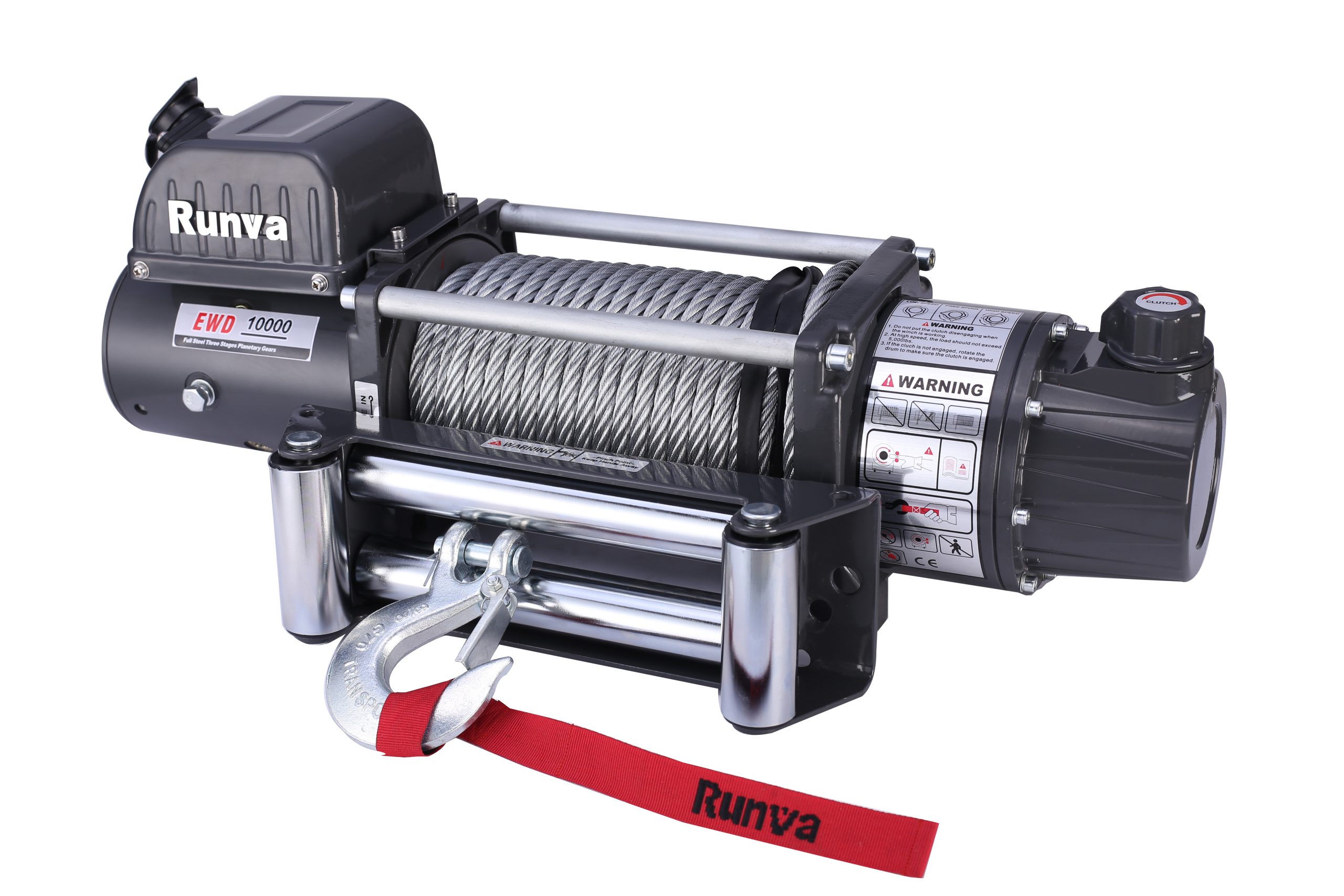

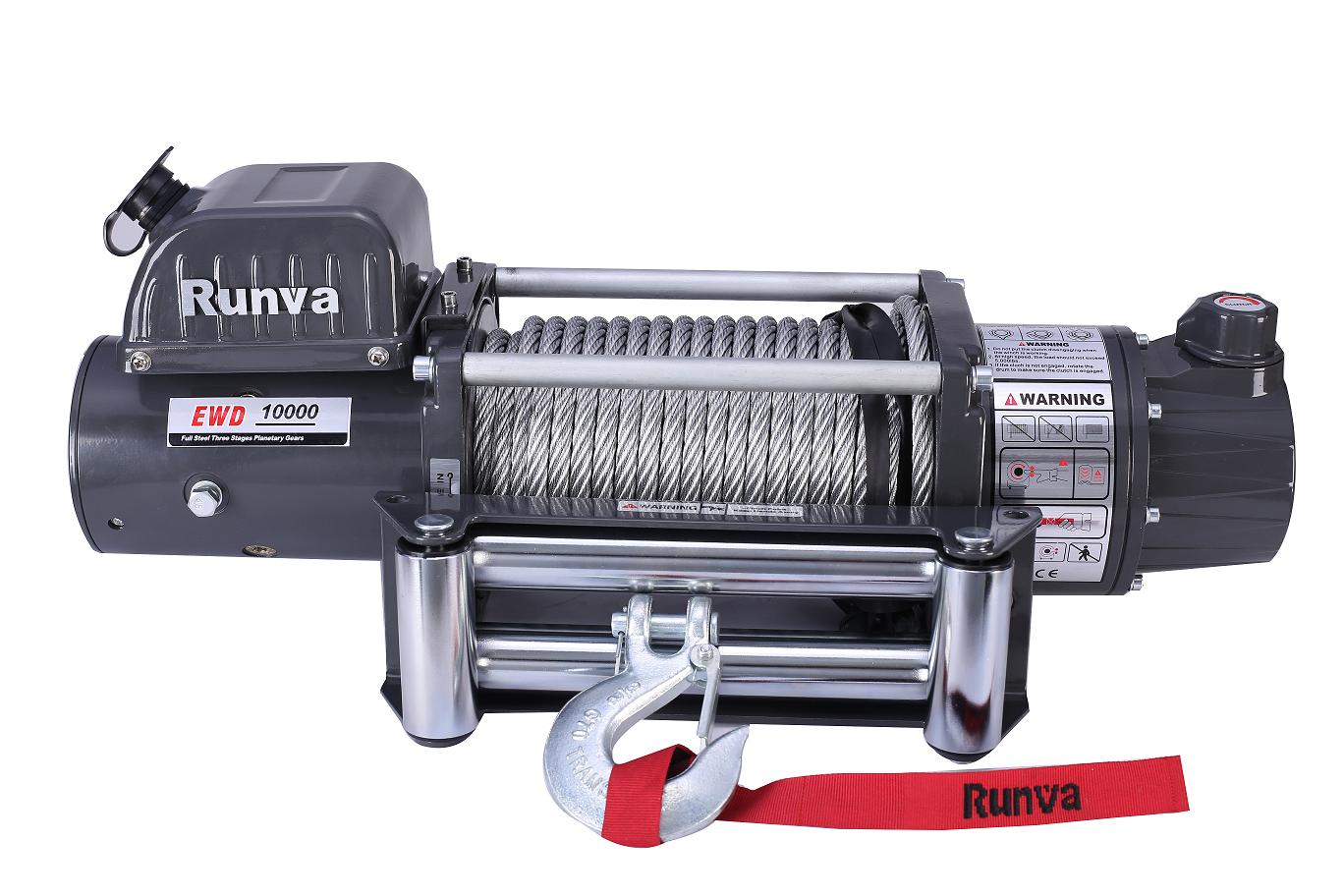

Description

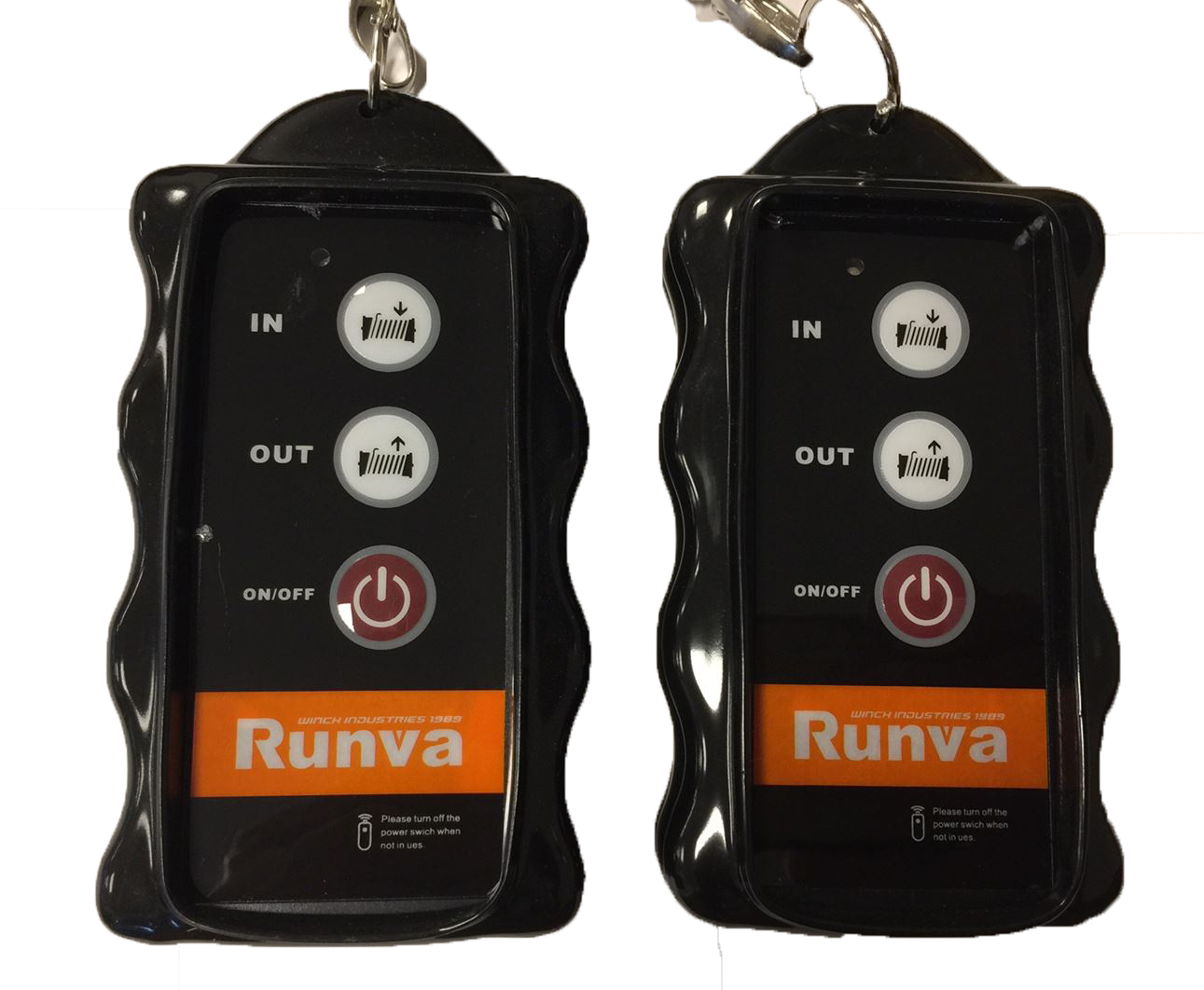

RUNVA 2S EWD 5500 (kg) 24V + Funk /Radio controlInkl. Funkfernbedienung / radio remote / radiografische afstandbediening
2 Speed / 2 Geschwindigkeiten / 2 Snelheden
| Rated line pull | 12000 lbs (5443kg) | ||
| Motor: series wound | 12V:Input: 5.4kW / 7.2hp; Output: 2.4kW / 3.2hp 24V:Input: 4.8kW / 6.4hp; Output: 3.1kW / 4.2hp |
||
| Gear reduction ratio | 267:1(Low speed); 86:1(High speed) | ||
| Cable (Dia × L) | Ø13/32″×83.7′ (ø10.2mm×25.5m) | ||
| Drum size (Dia × L) | Ø2.48″×8.8″ (ø63mm×223mm) | ||
| Mounting bolt pattern | 10″×4.5″ (254mm×114.3mm) 4-M10 | ||
| Low speed | High speed | ||||||||
| Line Pull lbs. (kg) | Line Speed ft/min (m/min) | Current A | Line Pull lbs. (kg) | Line Speed ft/min (m/min) | Current A | ||||
| 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | ||
| 0 | 29.5(9.0) | 31.2(9.5) | 70 | 60 | 0 | 88.6(27.0) | 91.9(28.0) | 75 | 65 |
| 6000(2722) | 7.9(2.4) | 9.2(2.8) | 250 | 130 | 3000(1361) | 22.3(6.8) | 23.3(7.1) | 290 | 150 |
| 9000(4082) | 6.6(2.0) | 7.5(2.3) | 345 | 160 | 4000(1814) | 13.8(4.2) | 19.7(6.0) | 400 | 190 |
| 12000(5443) | 4.9(1.5) | 6.2(1.9) | 450 | 200 | 5000(2268) | 10.5(3.2) | 14.8(4.5) | 490 | 240 |
| Line Pull and Rope Capacity in Layer Line Pull | Item | EWD12000U | ||||
| Layer of cable | Rated line pull lbs. (kg) |
Total rope on drum ft (m) |
Overall dimensions | 25.1″×6.3″×10.0″ | ||
| 1 | 12000(5443) | 16.1(4.9) | (L×W×H) | 637mm ×160mm ×254mm | ||
| 2 | 9562(4337) | 36.4(11.1) | Net weight (Ibs/kg) | 90.4lbs / 41kg | ||
| 3 | 7948(3605) | 60.0(18.3) | ||||
| 4 | 6800(3084) | 83.7(25.5) | ||||
