Description

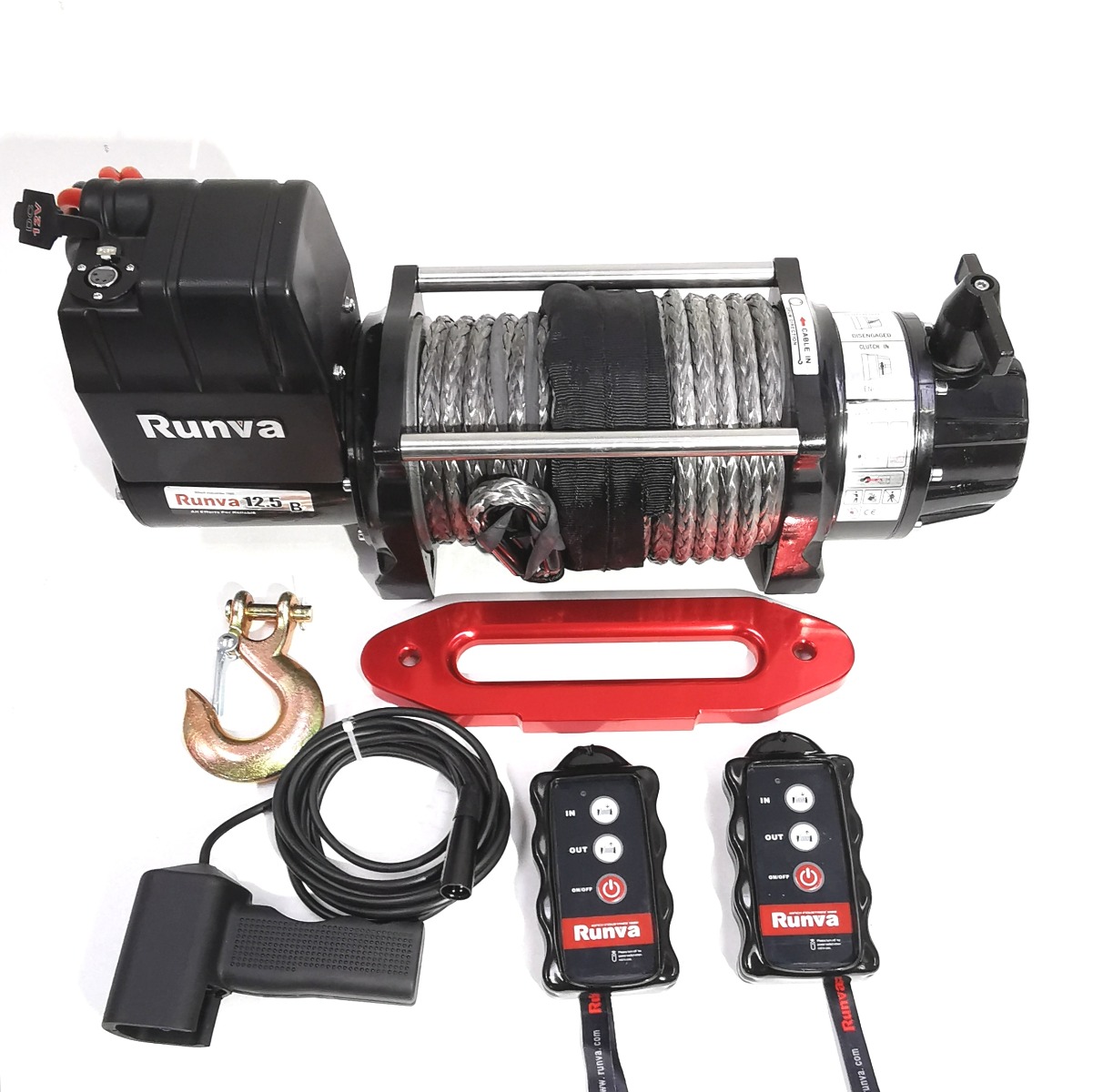

Mit Funkfernbedienung / with radio remote /met radiografische afstandbediening.
| Rated line pull | 5670 kg | |
| Motor: series wound | 24V:Input: 4.8kW / 6.4hp; Output: 3.1kW / 4.2hp | |
| Gear reduction ratio | 228:1 | |
| Cable (Dia.× L) | Ø10.2mm×25.5m | |
| Drum size (Dia.× L) | Ø63mm×217mm | |
| Mounting bolt pattern | 254mm×114.3 mm 4-M10 | |
| Line Speed Amperes Volts First Layer | Line Pull and Rope Capacity in Layer Line Pull | ||||||
| Line Pull Ibs.(kg) | Line Speed m/min | Current A | Layer of cable | Rated line pull lbs. (kg) | Total rope on the drum ft (m) | ||
| 12DC | 24DC | 12DC | 24DC | 1 | 5670 | 4.9 | |
| 0 | 10.0 | 10.6 | 75 | 60 | 2 | 4434 | 11.1 |
| 1361 | 4.8 | 5.3 | 190 | 85 | 3 | 3641 | 18.3 |
| 4082 | 2.5 | 3.1 | 360 | 150 | 4 | 3088 | 25.5 |
| 5670 | 1.6 | ||||||
| Item | EWB12500U | |

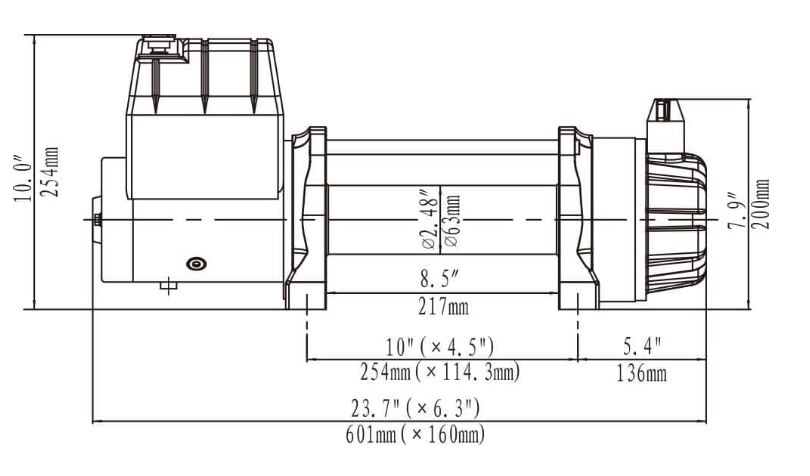

| Overall dimensions | ||
| (L×W×H) | 601 mm ×160mm ×254mm | |
| Net weight kg | 43 kg |
