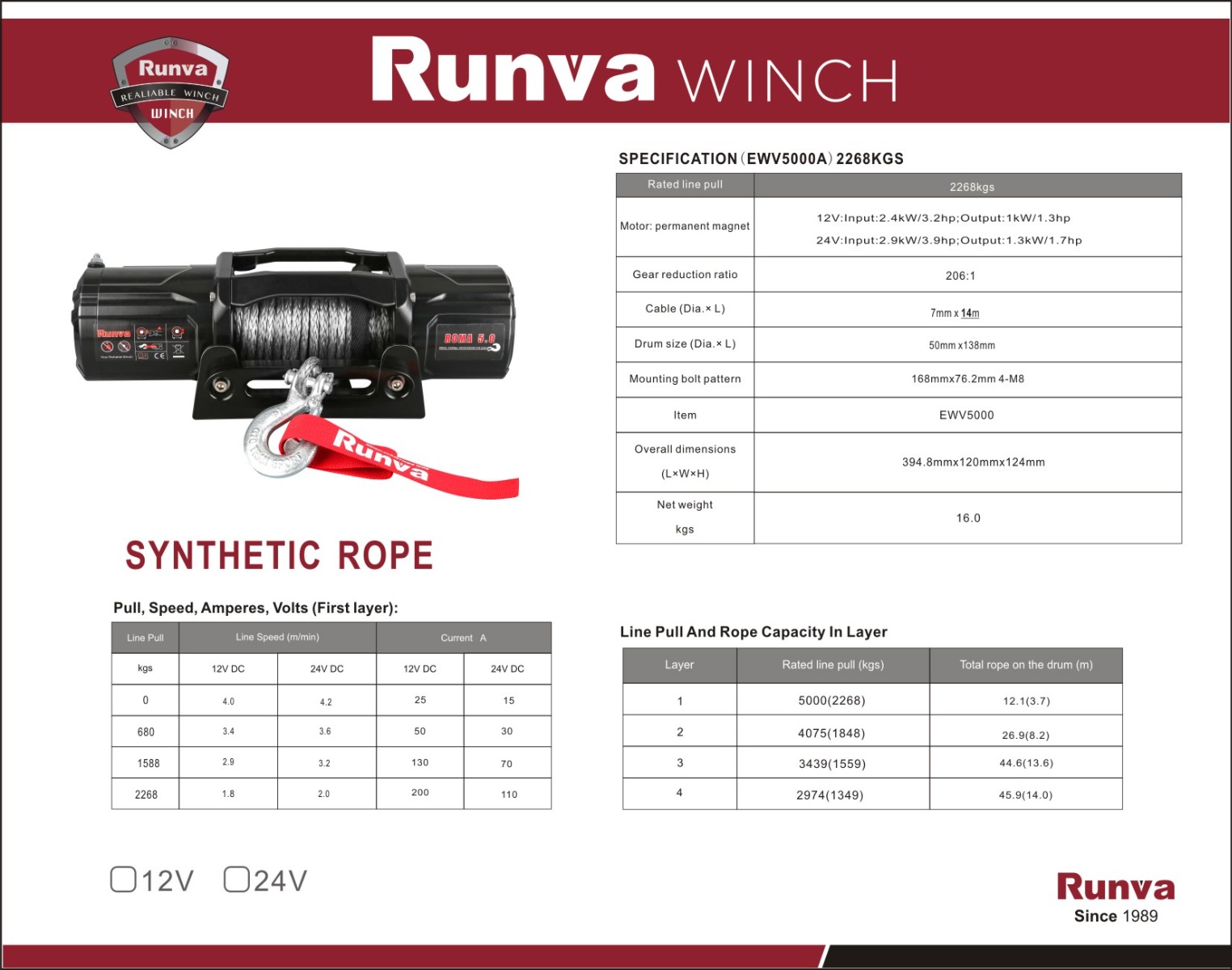

Description

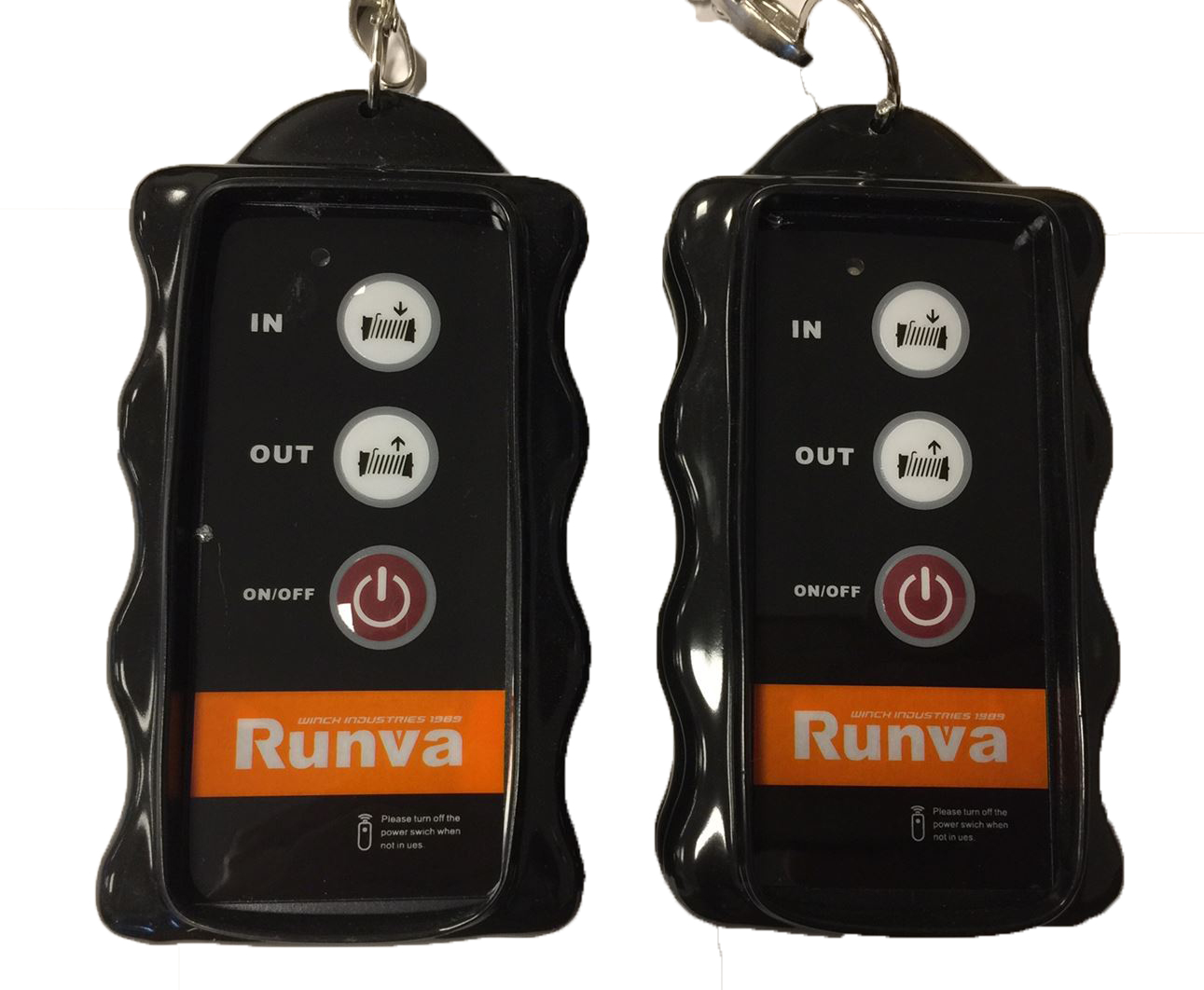

Roma SR 2268 (kg) E 12V + Funk /Radio control + Synthetic Rope
| Rated line pull | 2268 kgs | |
| Motor: series wound | Input: 2.4kW / 3.2hp; Output: 1kW / 1.3hp | |
| Gear reduction ratio | 206:1 | |
| Cable (Dia.× L) | Ø67mm×14m | |
| Drum size (Dia.× L) | Ø50mm×138 mm | |
| Mounting bolt pattern | 168mm×76.2 mm 4-M8 | |
| Item | Roma SR 2268 | |

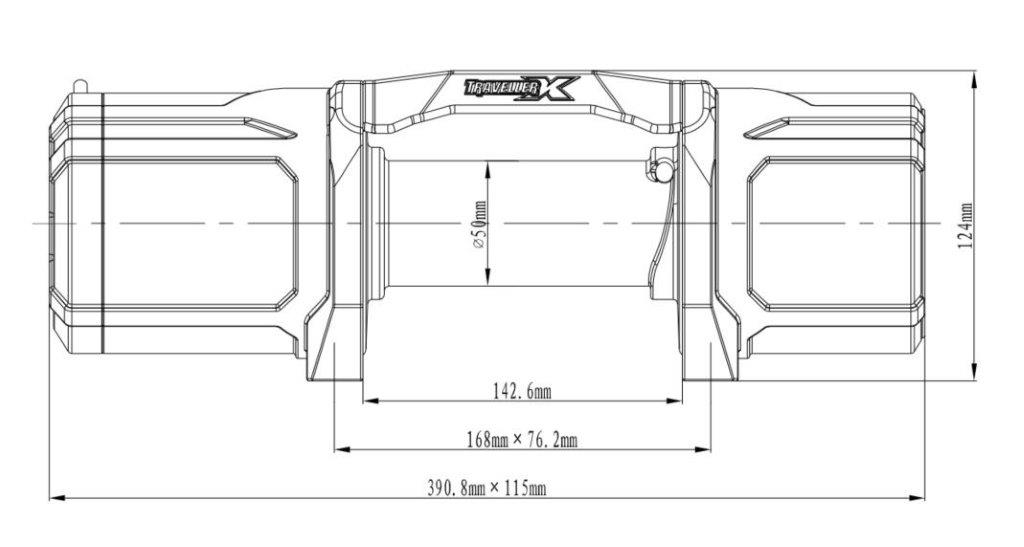

| Overall dimensions (L×W×H) |
390.8mm×115mm×124mm |
|
| Net weight kgs |
Synthetic rope 8 kg | Wire rope 10 kg |
| Line Pull | Line Speed m/min | Current A |
| kgs | 12V DC | 12V DC |
| 0 | 4.0 | 25 |
| 1134 | 3.6 | 50 |
| 2041 | 2.8 | 140 |
| 2722 | 1.4 | 210 |
Pull, Speed, Amperes, Volts (First layer):
Line Pull And Rope Capacity In Layer
| Layer | Rated line pull kgs | Total rope on the drum m |
| 1 | 2268 | 3.7 |
| 2 | 1848 | 8.2 |
| 3 | 1559 | 13.6 |
| 4 | 1349 | 14 |
