Description
Hydraulischer Winde in der Topklasse.

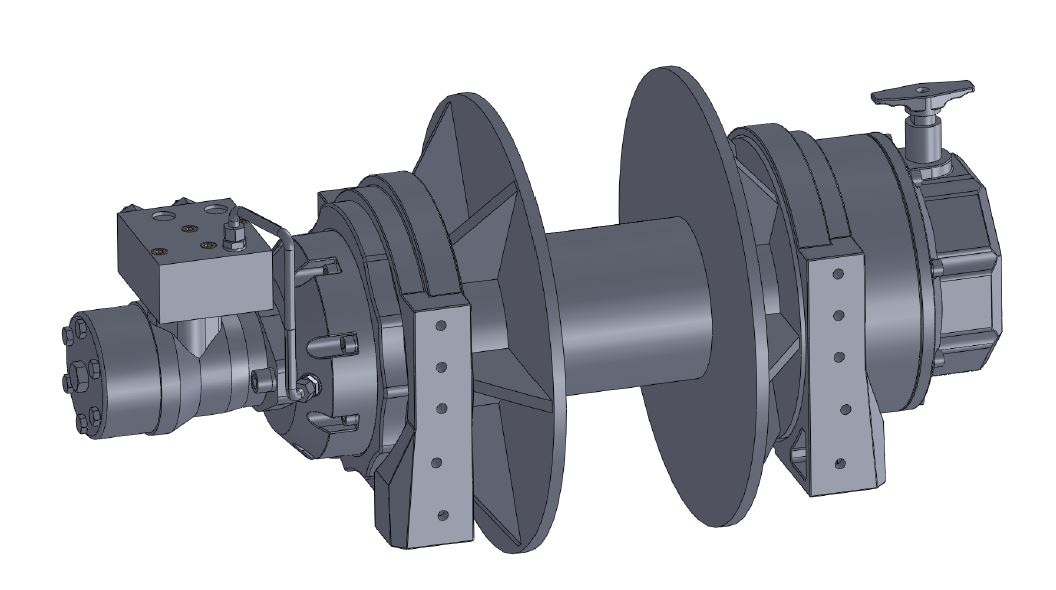

Big Drum
Kapazität / Capacitiy / Opslag

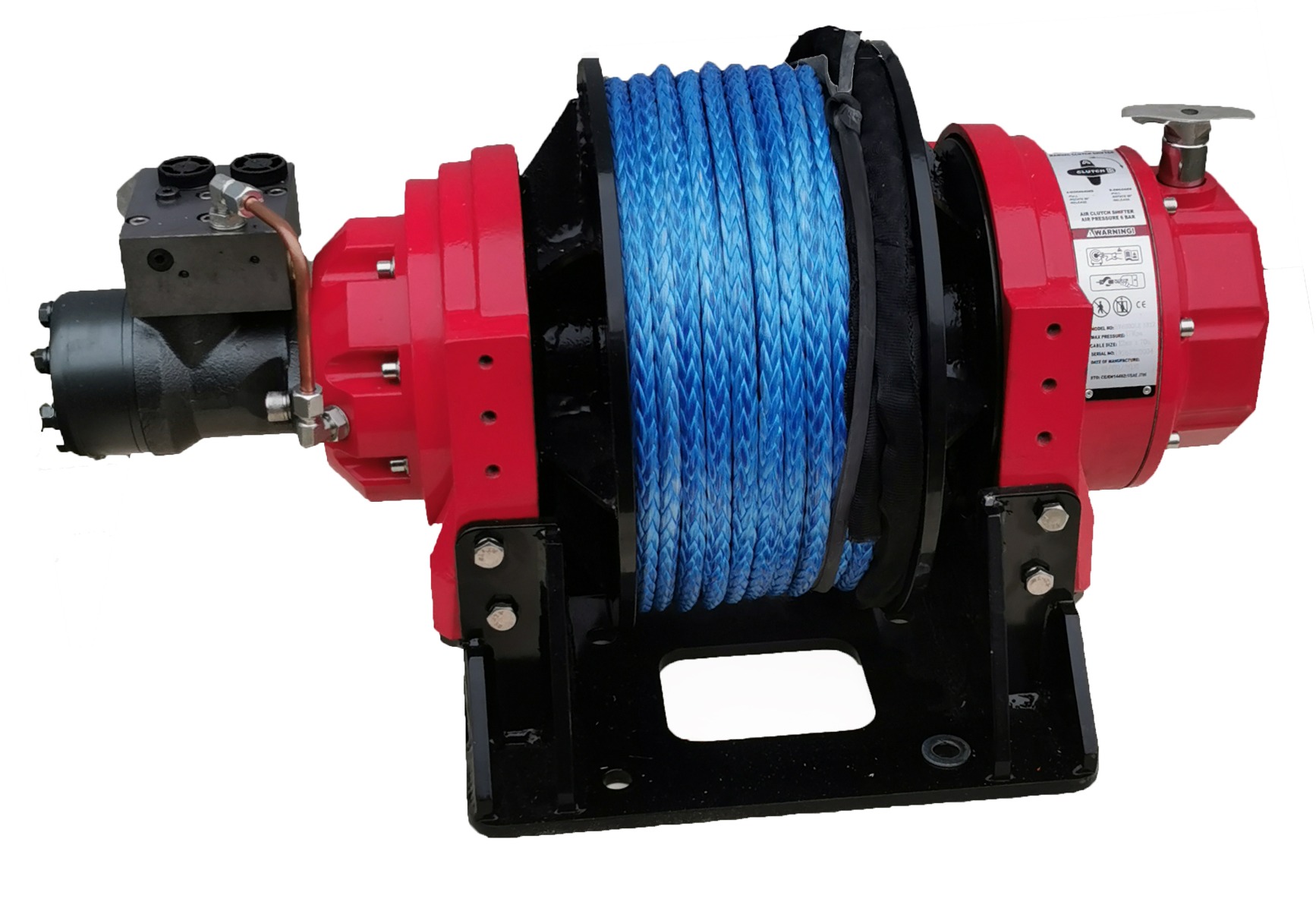

1) 8 mm 190 mtr Kunstofseil / Synthetic Rope + € 380
2) 12 mm 70 mtr Kunstofseil / Synthetic Rope + € 390

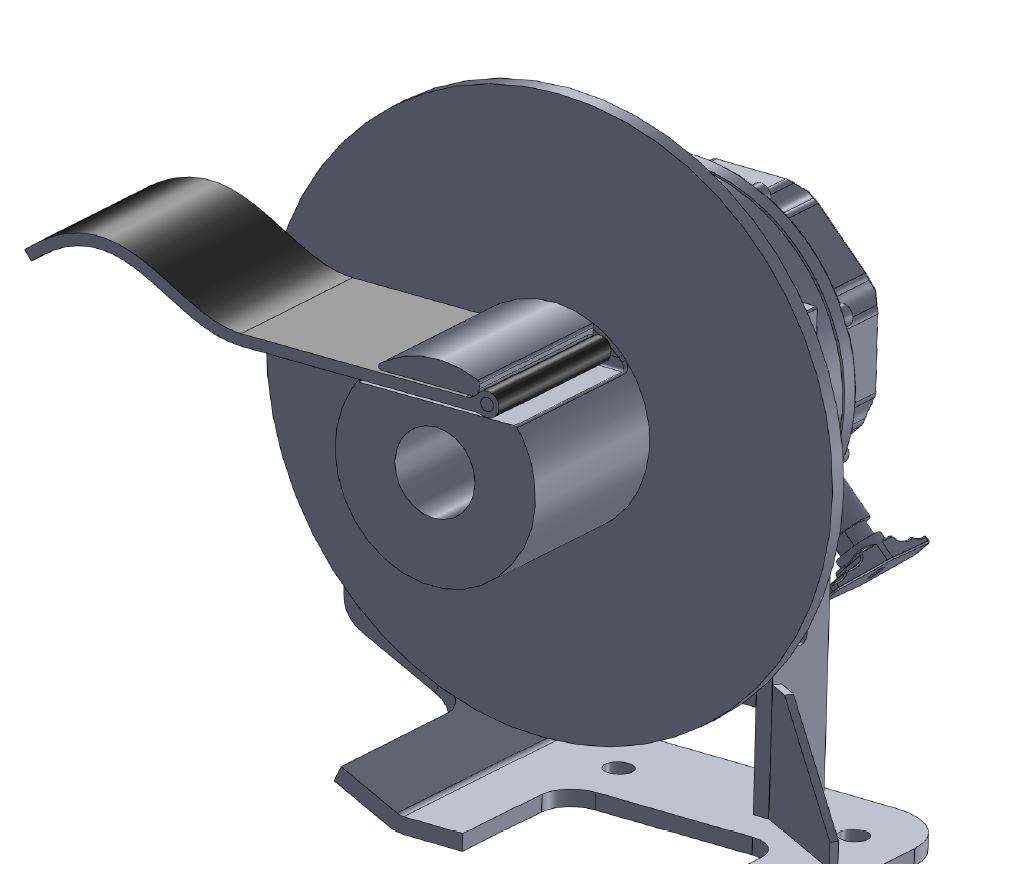

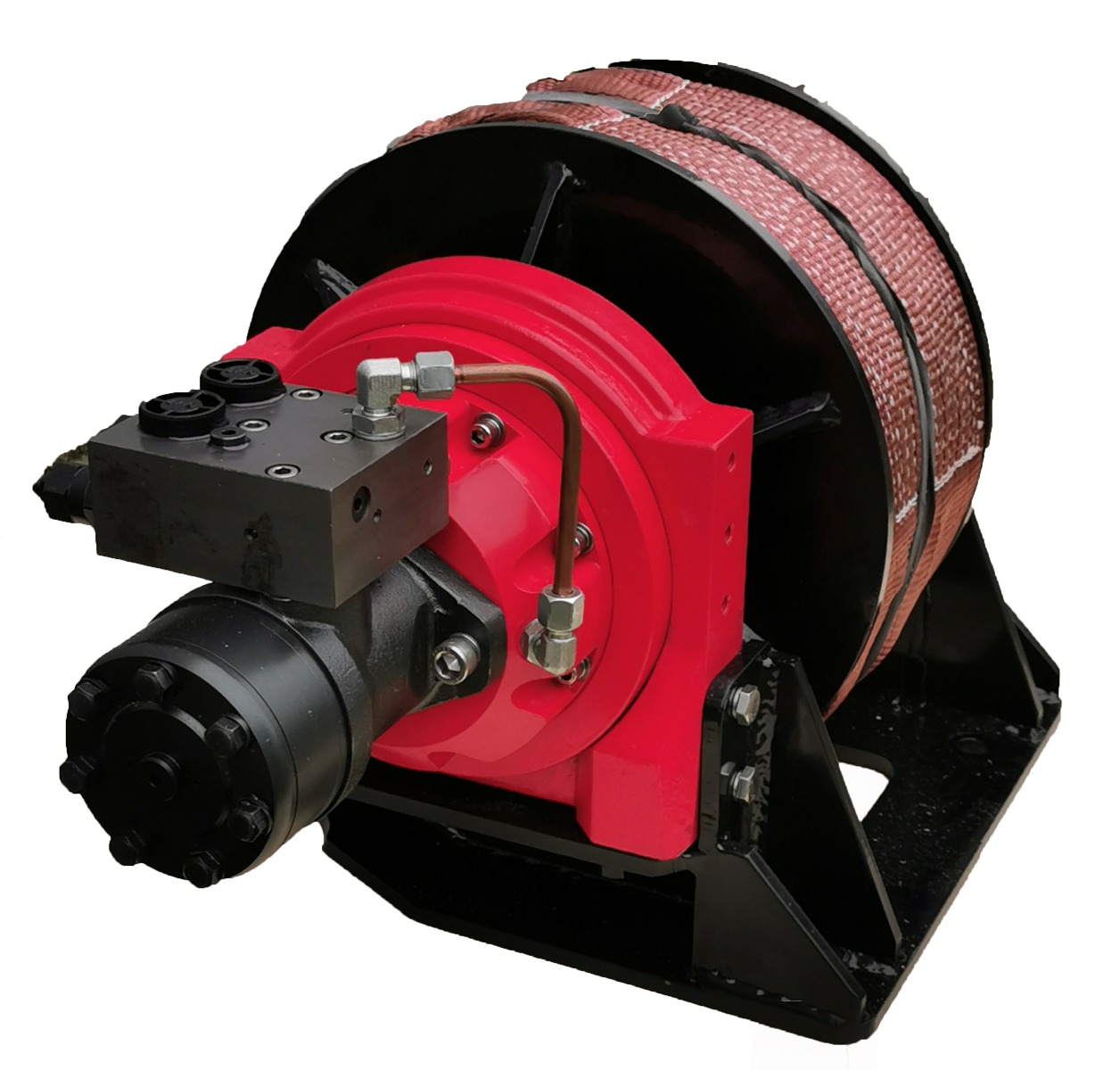

3) Gurt/Strap/Band 150 mm 30 mtr 15 T + € 260
Air and Manual Clutch combined / Manueller Freilauf auch pneumatisch zu bedienen / Combinatie van pneumatisch en manuele vrijloop
Professional Hydraulic winch Professionele Hydraulische lier

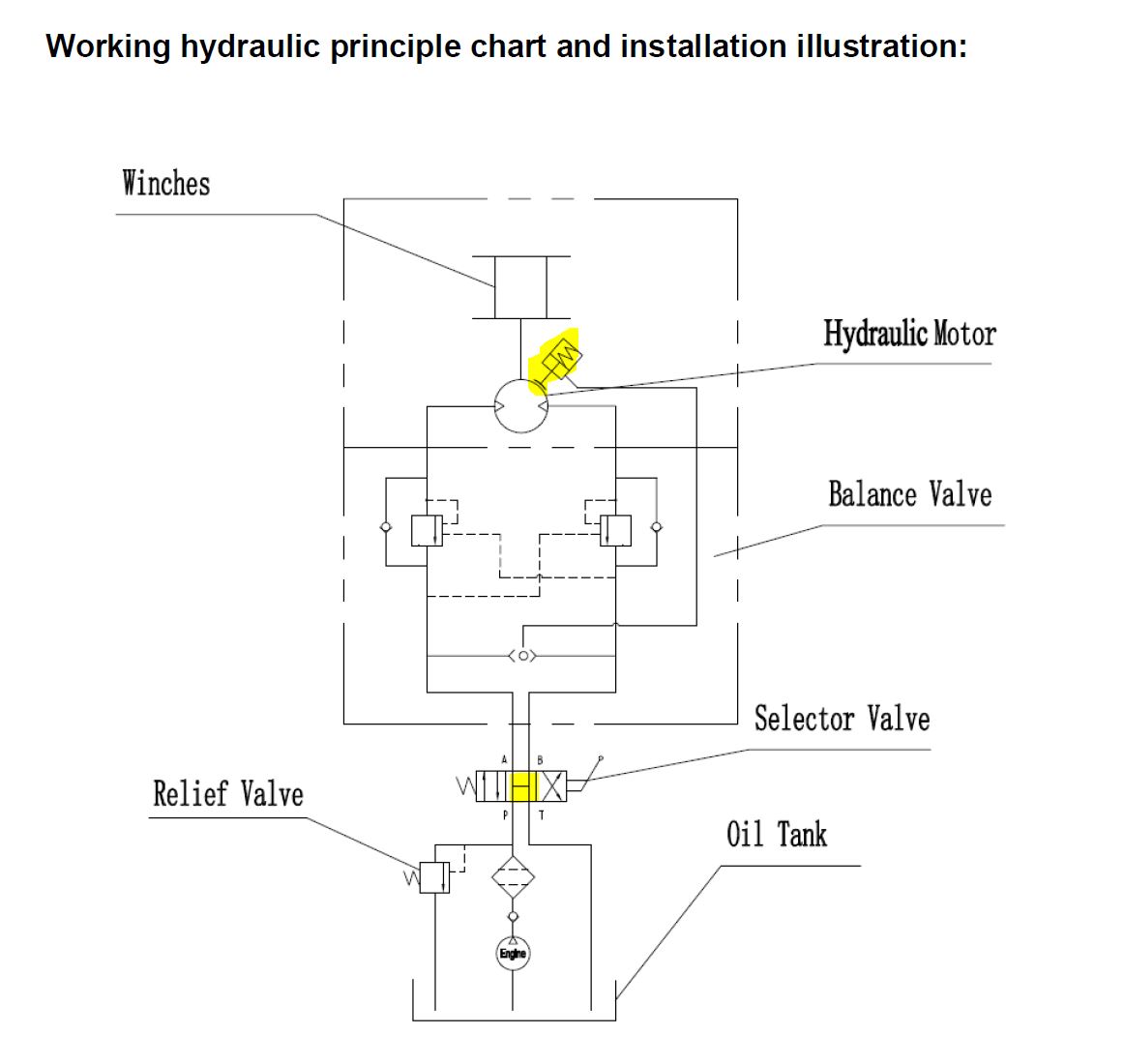

Inkl. Balance Valve / Seil-Rope / Andrückrolle-Cable Tensioner

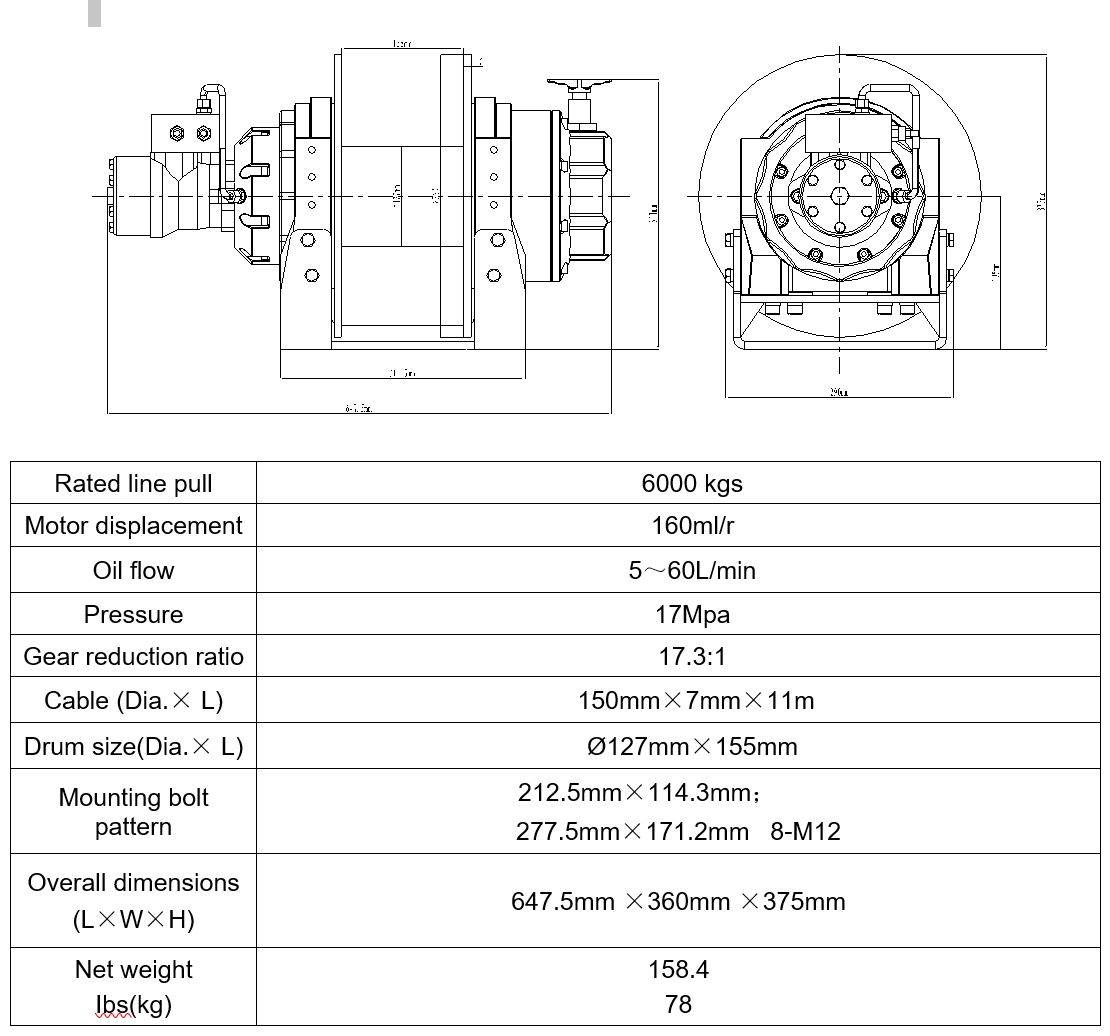

| Rated line pull | 6804 kgs 1 Layer |
| Motor displacement | 160ml/r |
| Oil flow | 5~60L/min |
| Pressure | 16Mpa |
| Gear reduction ratio | 17.3:1 |
| Cable (Dia.× L) | stbs |

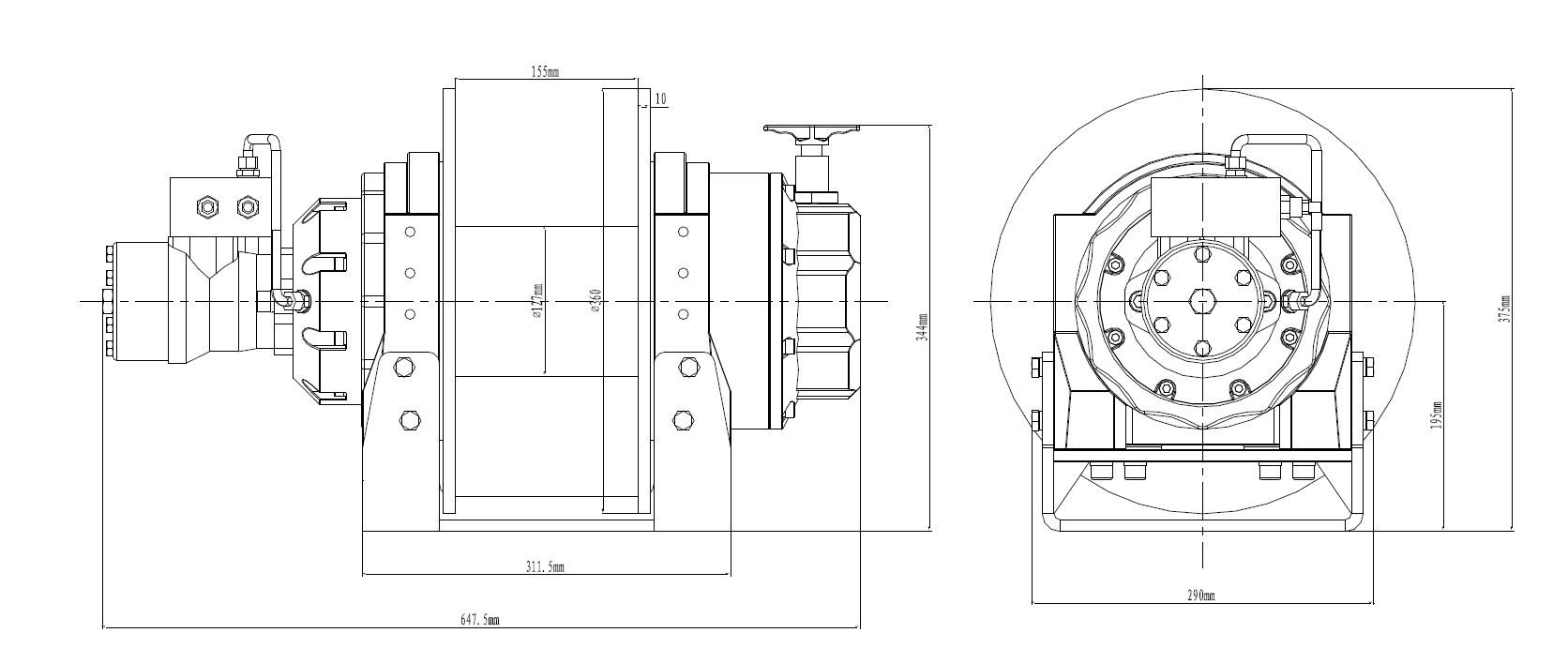

| Drum size(Dia.× L) | Ø200mm×155mm Flange 340 mm |

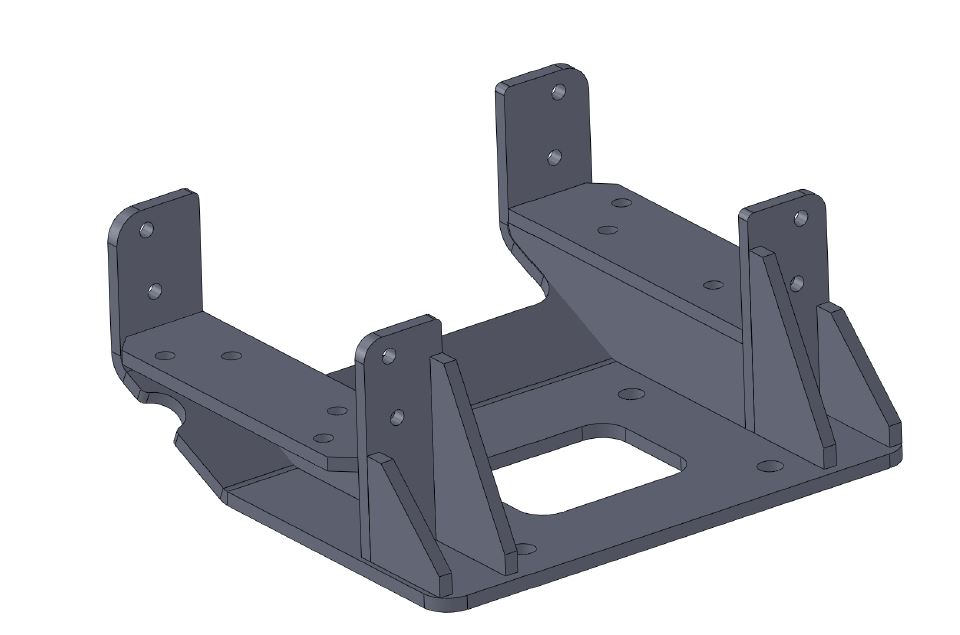

| Mounting bolt pattern | 303.5mm×114.3mm or 368.5mm×171.2mm 4-M12 |

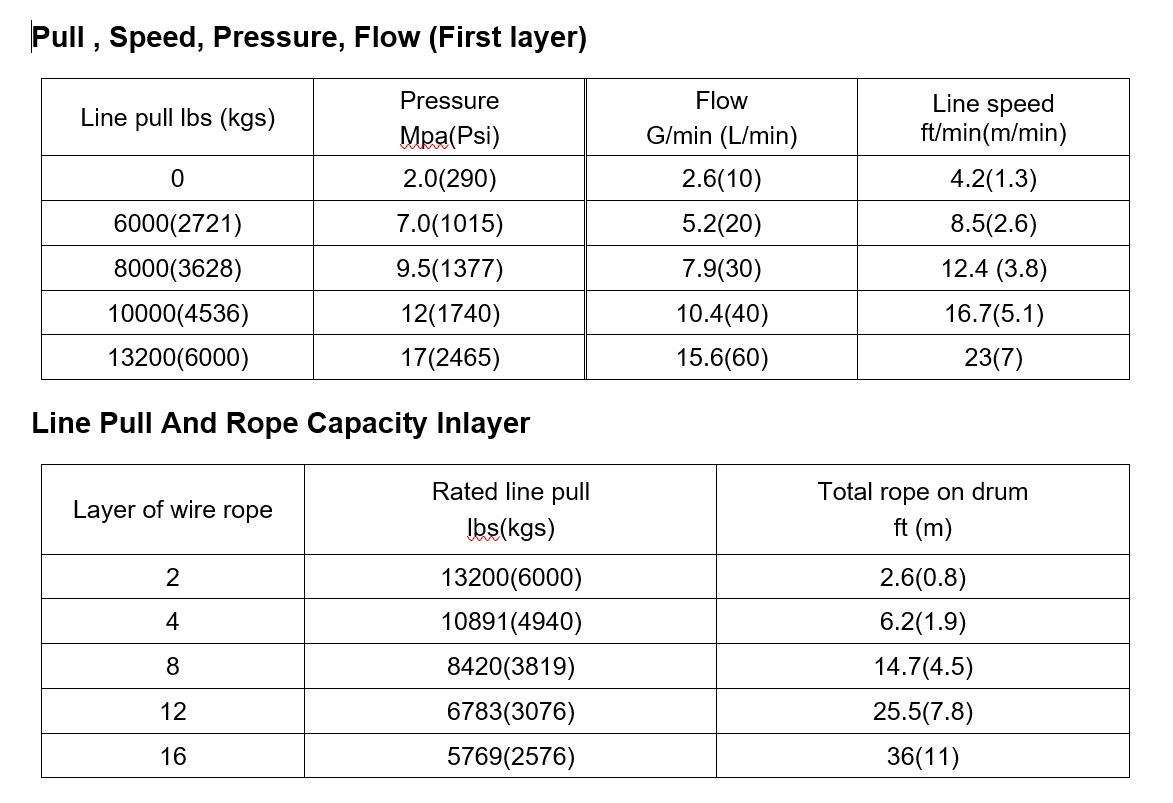

| Line Speed Amperes Volts First Layer | Line Pull and Rope Capacity in Layer Line Pull | |||||
| Line pull Lbs.(kg) | Pressure Bar | Flow L/min | Line speed m/min | Layer of cable | Rated line pull kg | Total rope on drum (m) |
| 0 | 20 | 10 | 1.3 | Begin | 6804 | |
| 8000(3629) | 92 | 20 | 2.6 | Nominal | 5000 | |
| 10000(4536) | 115 | 30 | 3.8 | middle/mitte | 4500 | |
| 12000(5448) | 140 | 40 | 5.1 | top | 2500 | |
| 15000(6810) | 175 | 50 | 6.4 | |||
Drum: Dia 127 and flange 340 mm width 155
110 kg
