Description
( mit Kunstofseil Version siehe Runva SR 4300 EC )
( for synthetic rope version look Runva SR 4300 EC)

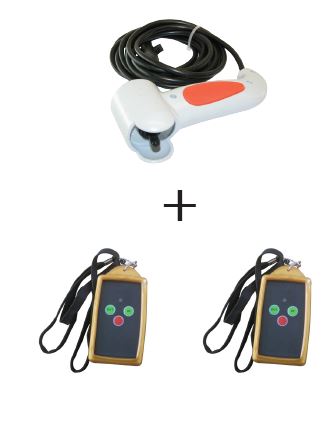

2 x Radio Remote Control + Handheld 3 mtr
2 x Funkfernbedienung + Kabel Bedienung 3 mtr
2 x radiografische afstandbediening + Handbediening 3 mtr
Stainless steel parts / Rollenfenster. Bolzen und dergleichen aus Edelstahl / Bouten, rollenvenster etc. uit Roestvaststaal
Extra Sealings and overrated Relais / Extra abgedichtet und extra schwere Relais / Extra afdichting en extra zware relais

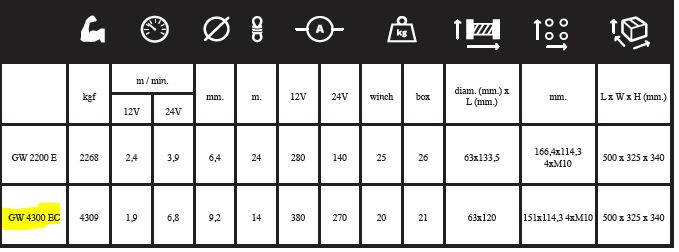

| SPECIFICATION | |
| Rated line pull | 94309 kgs |
| Motor: series wound | 12V:Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp 24V:Input: 6.5kW / 8.1hp; Output: 2.8 kW / 3.8hp |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø9.2mm×14.0 |
| Drum size (Dia.× L) | Ø63mm×120mm |
| Mounting bolt pattern | 151mm×114.3 mm 4-M10 |

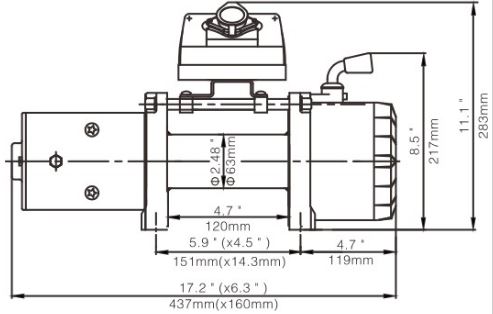

| Overall dimensions (L×W×H) |
437mm ×160 mm ×283 mm |
| Net weight Ibs(kgs) |
29.5 |
| Pull, Speed, Amperes, Volts (First layer): | ||||
| Line Pull | Line Speed m/min | Current A | ||
| Ibs (kgs) | 12V DC | 24V DC | 12V DC | 24V DC |
| 0 | 6.0 | 6.8 | 80 | 70 |
| 3000(1361) | 3.8 | 5.0 | 170 | 140 |
| 6000(2722) | 3.0 | 3.9 | 260 | 210 |
| 9500(4309) | 1.9 | 2.9 | 380 | 270 |
| Line Pull and Rope Capacity In Layer | ||
| Layer | Rated line pull lbs (kgs) | Total rope on the drum ft (m) |
| 1 | 4309 | 3.0 |
| 2 | 3495 | 7.5 |
| 3 | 2940 | 13.0 |
| 4 | 2537 | 14.0 |
Inkl. Funkfernbedienung (TRX) / Incl. Wireless remote / Incl. Radiografische afstandbediening
