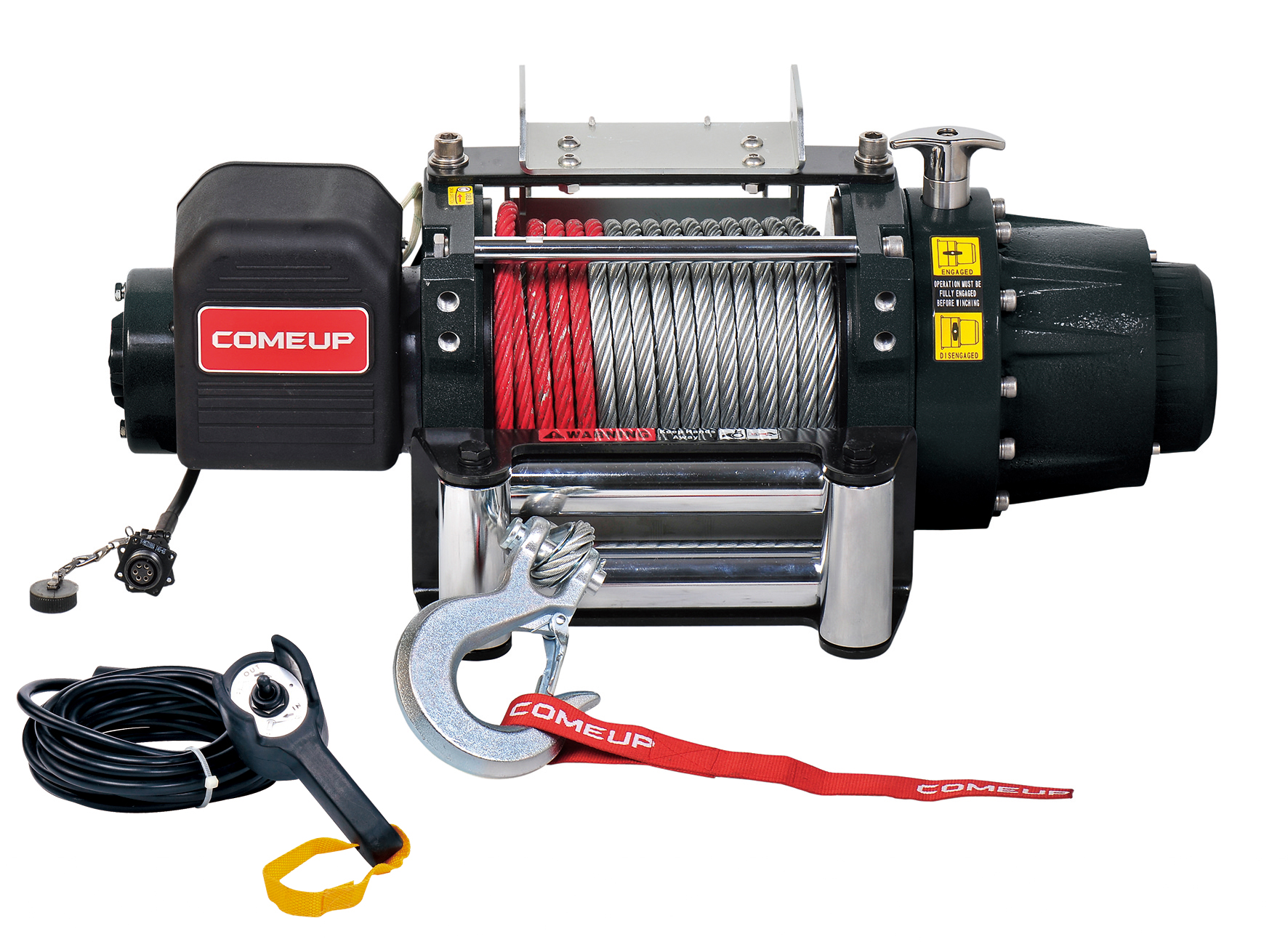

ComeUp Walrus 22 (10.000 kg) 24V



Walrus 22.0
  • 24V DC severe duty winch rated at 10.000 kg
  • Waterproof and dustproof construction:
    – Potted contactor and motor provide complete protection from water penetration and allow dependable operation in up to 1.8 meter of water.
    – Rubber seals at motor and gear housing joints for independent water protection
    – Double lip and spring seal at drum support racks
    – Industrial duty remote control with twist-on connector to provide total protection from water.
  • Waterproof remote control with thermometric LED indicator alerts when receiving a warning signal from the motor over-heated.
  • Tough aluminum die cast housings withstand strength of 2 times winch line pull at least.
  • U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slippage.
  • Corrosion resistance 720hr.
  • Meet international standards of CE Machinery Directive 2006/42/CE, CE Electromagnetic Compatibility Directive 2004/108/EC, and SAE J706 Surface Vehicle standard 2003-08 rev.
  • Specification
    • Rated line pull: 9,980 kg / 22,000 lb (single line)
    • Line speed ( 1st layer):
    • 9.0 mpm  30 A at 24V no load
      1.4 mpm  330 A at 24V full load
    • Control: Waterproof remote with thermometric indicator LED w/ 5 m  cord
    • Rope type: 6 × 29 – IWRC. (Breaking strength 126.4 kN)
    • Rope size: 12.7 mm x 25 m
    • Winch weight (including rope) : 80 kg
    • Gross weight : 86.1 kg
    • Box dimension  : 745 x 275 x 430 mm



SKU: 1.K.3 Categories: ,

Description



Walrus 22.0
  • 24V DC severe duty winch rated at 22.000 lb
  • Waterproof and dustproof construction:
    – Potted contactor and motor provide complete protection from water penetration and allow dependable operation in up to 1.8 meter of water.
    – Rubber seals at motor and gear housing joints for independent water protection
    – Double lip and spring seal at drum support racks
    – Industrial duty remote control with twist-on connector to provide total protection from water.
  • Waterproof remote control with thermometric LED indicator alerts when receiving a warning signal from the motor over-heated.
  • Tough aluminum die cast housings withstand strength of 2 times winch line pull at least.
  • U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slippage.
  • Corrosion resistance 720hr.
  • Meet international standards of CE Machinery Directive 2006/42/CE, CE Electromagnetic Compatibility Directive 2004/108/EC, and SAE J706 Surface Vehicle standard 2003-08 rev.
  • Specification/Part Numbers
    • Part Number:PN 282210 (24V)
    • Rated line pull: 9,980 kg / 22,000 lb (single line)
    • Line speed ( 1st layer): 9.0 mpm / 29.5 fpm 30 A at 24V no load
                                              1.4 mpm / 4.6 fpm 330 A at 24V full load
    • Motor: 5,220 w / 7.0 hp 24V series wound
    • Gear train: 3-stage planetary 343:1
    • Clutch (freespooling): Rotating ring gear
    • Brake (outside the drum): Automatic, full load  CBS (Cone Brake Structure)
    • Winch construction: Aluminum die cast housings with steel drum
    • Drum size:102 mm x 254L mm (4” x 10”L)
    • Control: Waterproof remote with thermometric indicator LED w/ 5 m (17′) cord
    • Rope type: 6 × 29 – IWRC. (Breaking strength 126.4 kN)
    • Rope size: 12.7 mm x 25 m (1/2” x 82’)
    • Mounting bolt pattern: 304 mm x 114.3 mm (12” x 4.5”)
                                             304 mm x 165 mm (12″ x 6.5″)
    • Mounting: Foot forward mounting only
    • Winch weight (including rope) : 80 kg / 176.4 lb
    • Gross weight : 86.1 kg / 189.8 lb
    • Box dimension  : 745 x 275 x 430 mm (29.3″ x 10.8″ x 16.9″)

    Line Speed and Amp. Draw (1st layer of wire rope on the drum):

    Line Pull,
    kg / lb
    Line Speed,
    mpm / fpm
    Amp. Draw,  A
    24V
    No load
    9.0 / 29.5
    30A
    2,268 / 5,000
    3.2 / 10.5
    100A
    4,536 / 10,000
    2.5 / 8.2
    160A
    6,804 / 15,000
    2.0 / 6.6
    240A
    9,980 / 22,000
    1.4 / 4.6
    330A

    Line Pull and Rope Capacity:

    Layer of Rope
    Pull by layer, kg / lb
    Total Rope on the Drum, m / ft
    1st
    9,980 / 22,000
    7.0 / 23.0
    2nd
    8,171 / 18,014
    15.5 / 50.9
    3rd
    6,917 / 15,249
    25.0 / 82.0

    Warning

    •The winch is not intended to be used in any manner for the movement or lifting of personnel.
    • The rated line pull shown is based on the first layer of rope on the drum.
    • The rope winding on the drum shall remain 5 wraps from the drum.

    Warranty

    Each new winch is guaranteed against defects in workmanship and material defects for a stipulate period from date of purchase.
    *Automotive Winch: Limited lifetime warranty for mechanical components,
                                   One (1) year warranty for electrical components,
    WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.


    Dimension, mm/in:

     Accessory:

    Standard Accessories:
    • Roller fairlead
    • Remote control w/5 m (17’) cord
    • Detachable control box
    • Wire rope w/clevis hook
    • Cable tensioner
    • 1.8 m (6’) 2 gauge battery lead
    • Handsaver strap

Additional information

Weight 71 kg
